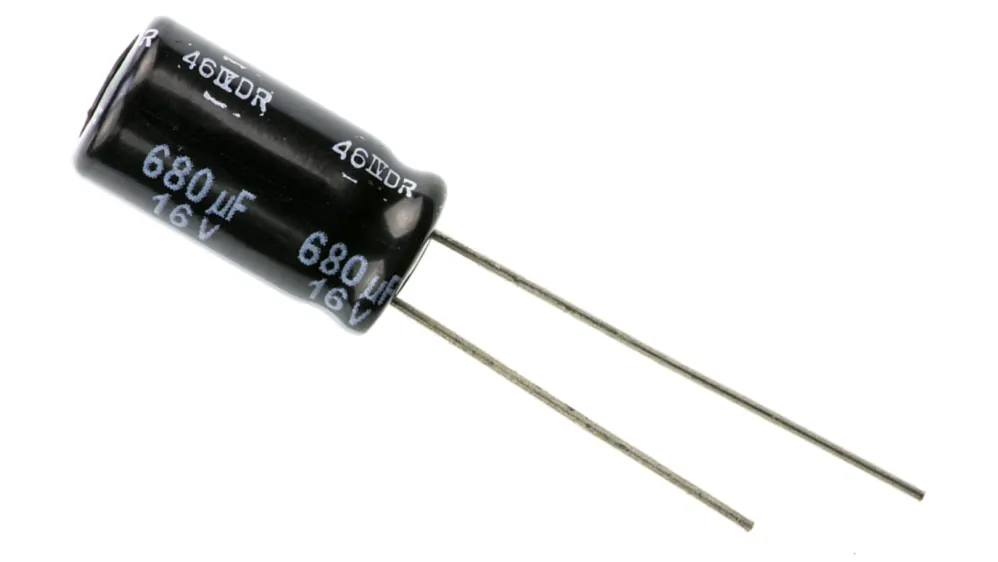

Electrolytic Capacitor 680µF/16V
The 680µF 16V electrolytic capacitor is ideal for low-voltage DC applications. It offers excellent filtering, ripple reduction, and voltage smoothing. Commonly used in audio circuits, sensors, and microcontroller-based systems. The 16V rating makes it suitable for small power supplies and embedded designs. High capacitance ensures stable voltage output and helps prevent power dips. Its compact cylindrical body fits well on densely packed PCBs. Polarized design requires proper orientation. Through-hole leads allow easy and secure mounting. A reliable choice for makers, technicians, and engineers in prototyping, repair, or production builds.
| Parameter | Value |
|---|---|
| Capacitance | 680 µF |
| Rated Voltage (DC) | 16 V |
| Capacitance Tolerance | ±20% |
| Polarity | Polarized (Electrolytic) |
| Operating Temp. Range | -40°C to +85°C |
| Leakage Current | ≤ 110 µA after 2 minutes |
| ESR | Low to moderate ‘ |
| Dimensions (Approx.) | 8 mm (Dia.) × 12–14 mm (H) |
| Lead Spacing | 3.5 mm |
| Mounting Type | Through Hole |
| Applications | Filtering, audio, low-voltage DC |
| RoHS Compliant | Yes |
