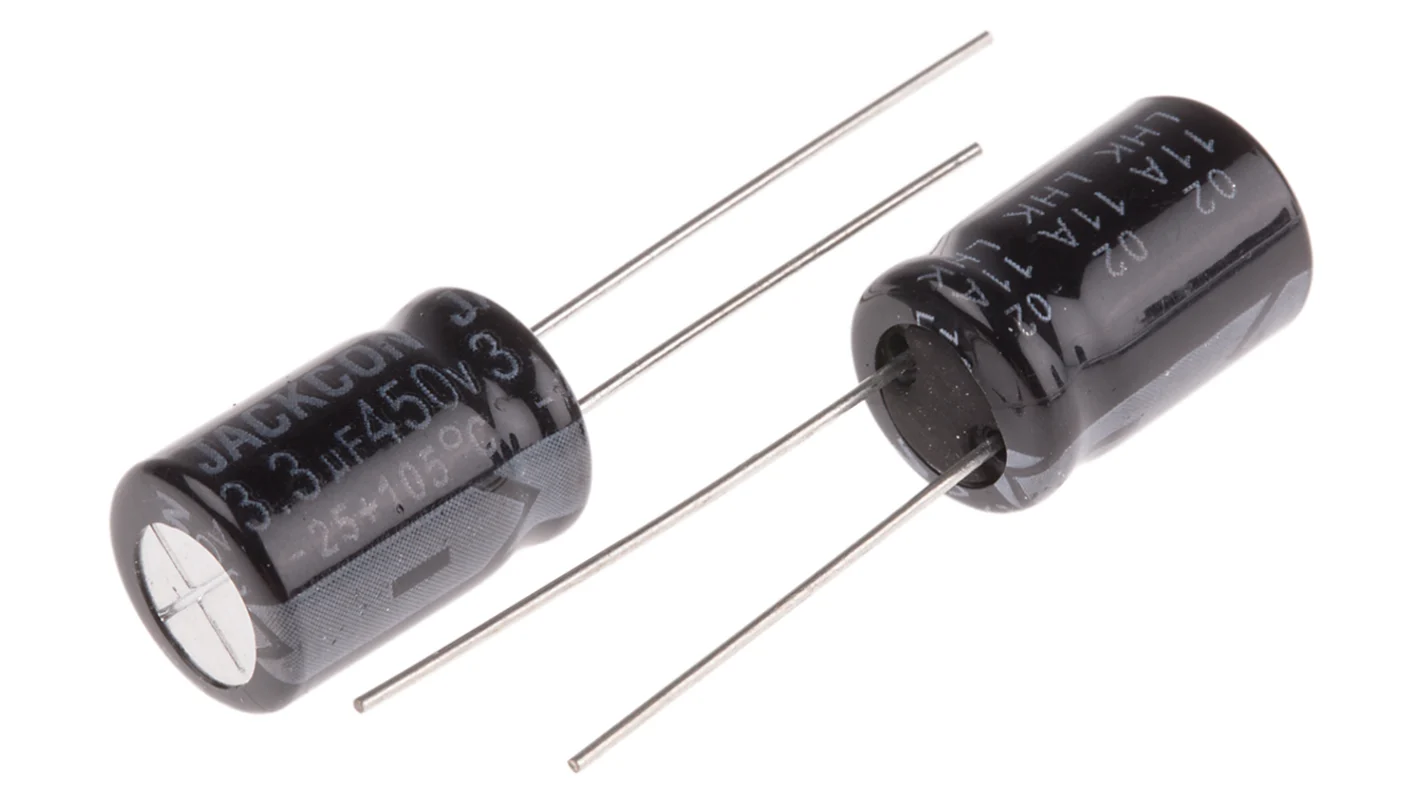

Electrolytic Capacitor 3.3µF/450V
The Electrolytic Capacitor 3.3µF 450V is strong and dependable. It is polarized and works in DC circuits. Use it to filter and smooth voltage. helps reduce ripple and unwanted noise. also couples and decouples signals. This capacitor can handle up to 450 volts. offers stable and safe performance. protects sensitive parts from voltage spikes. keeps voltage steady and signals clean. Its small size saves space on the board. mounts easily on PCBs and breadboards. Use it in power supplies and audio systems. It works well in amplifiers too. Perfect for repairs and new builds. Trusted by hobbyists and professionals. It ensures reliable results for high-voltage designs.
| Parameter | Value |
|---|---|
| Capacitance | 3.3 µF |
| Rated Voltage (DC) | 450 V |
| Capacitance Tolerance | ±20% (typical) |
| Polarity | Polarized (Electrolytic) |
| Operating Temperature Range | -40°C to +85°C |
| Leakage Current | ≤ 10 µA after 2 minutes |
| ESR (Equivalent Series Resistance) | Low to moderate |
| Dimensions (Approx.) | 6 mm (Dia.) × 19–23 mm (H) ‘ |
| Lead Spacing | 2 mm to 2.5 mm |
| Applications | Filtering, smoothing, coupling, decoupling |
| Mounting Type | Through Hole |
| RoHS Compliant | Yes |
