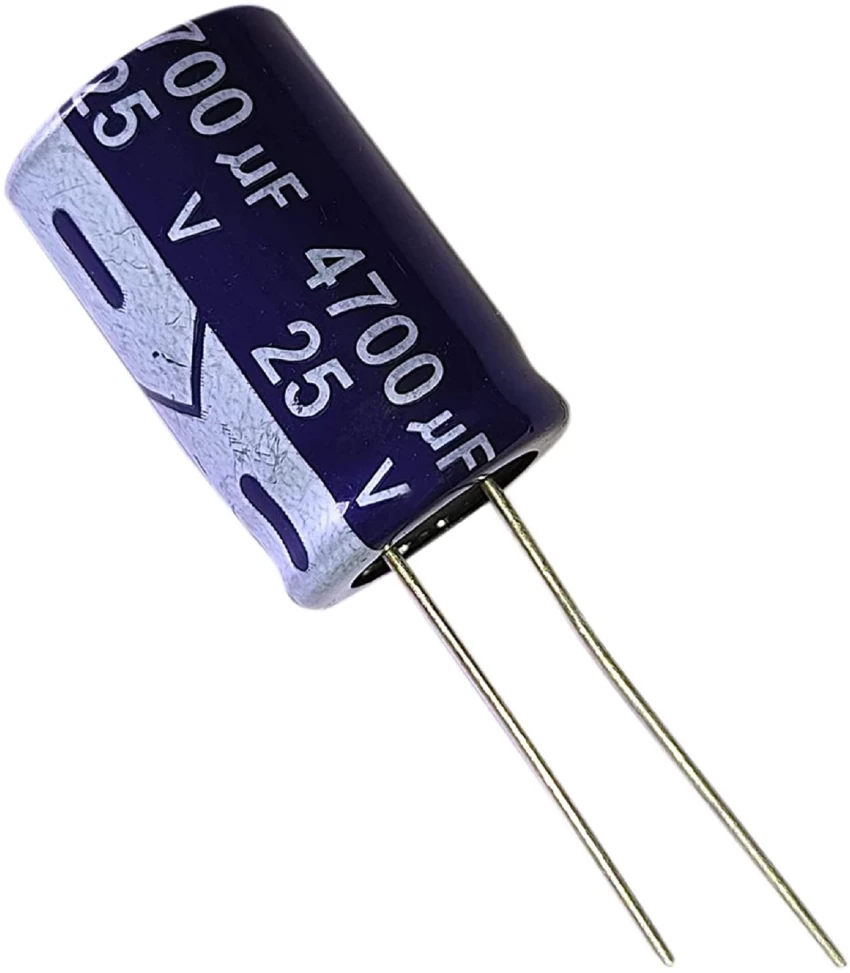

Electrolytic capacitor 4700µF/25V
The 4700µF 25V electrolytic capacitor filters voltage and stores energy in low to mid-voltage systems. It works well in audio circuits, DC power rails, and LED drivers. The aluminum electrolytic design provides stable performance and long life. It smooths DC output and reduces voltage ripple. You can install it easily on a through-hole PCB. Clear polarity markings help prevent incorrect placement. A safety vent protects the component during overloads. The cylindrical body fits standard PCB layouts. It operates reliably from –40°C to +105°C. RoHS compliance makes it suitable for environmentally safe designs. Use it when your circuit demands high capacitance with dependable operation.
| Parameter | Value |
|---|---|
| Capacitance | 4700 µF |
| Rated Voltage | 25 V DC |
| Capacitance Tolerance | ±20% |
| Polarity | Polarized |
| Operating Temperature | –40°C to +105°C |
| ESR (Typical) | 0.015 – 0.05 Ω (varies by series) |
| Ripple Current (120 Hz) | ~3.2 – 4.2 A RMS (typical) |
| Lead Spacing | 7.5 mm or 10 mm ‘ |
| Case Size (Example) | 18 mm (D) × 35 mm (H) or 22 × 40 mm |
| Mounting Type | Through-hole |
| Shelf Life | 2000 hours @ 105°C |
| Compliance | RoHS compliant |
