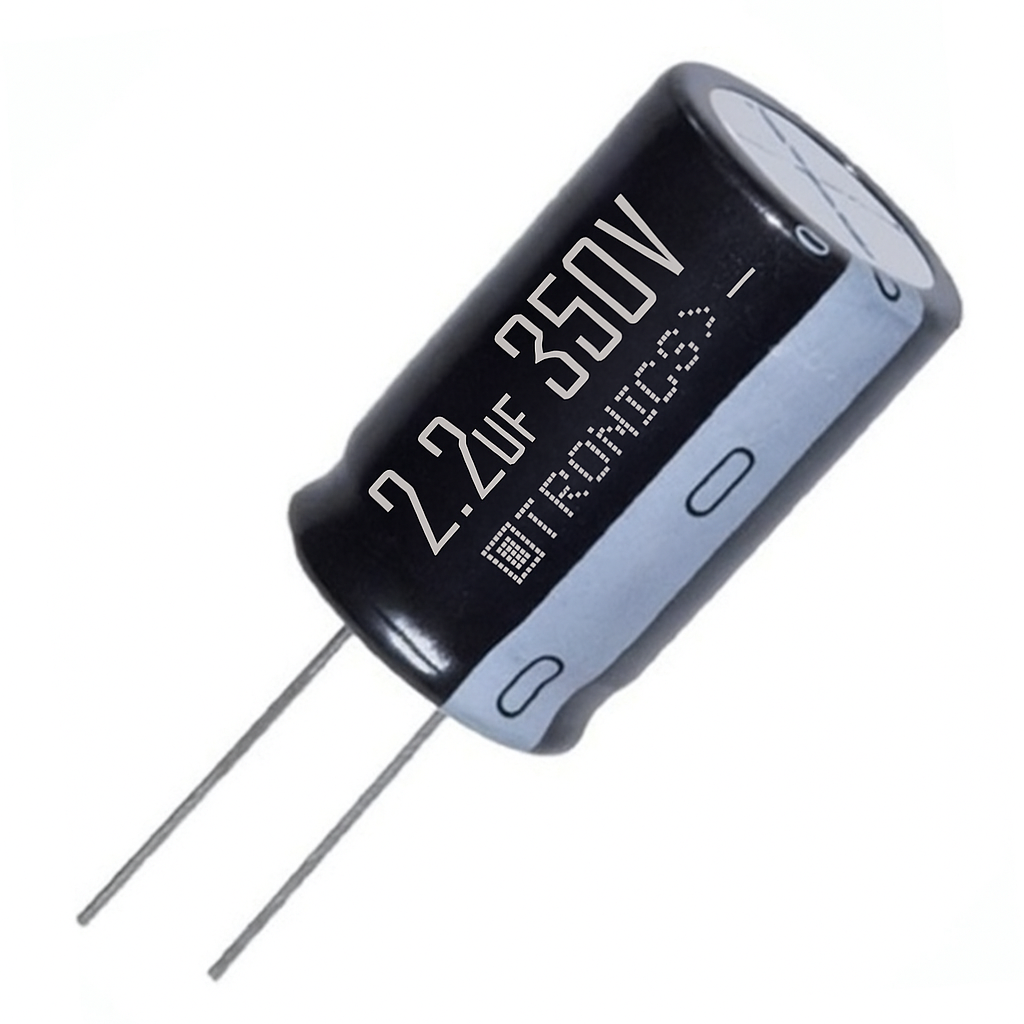

Electrolytic Capacitor 2.2µF/350V
The Electrolytic Capacitor 2.2µF 350V is a high-voltage, polarized capacitor. It works well in DC circuits. Use it to filter and smooth voltage. reduces ripple and unwanted noise. also couples and decouples signals. This capacitor can handle up to 350 volts. It provides stable and safe performance. helps protect sensitive parts in your circuit. keeps voltage steady and signals clean. is small and saves space on the board. It is easy to mount on PCBs and breadboards. Use it in amplifiers and high-voltage power supplies. Great for repairs and DIY projects. Trusted by hobbyists and professionals. It gives reliable results in demanding circuits.
| Parameter | Value |
|---|---|
| Capacitance | 2.2 µF |
| Rated Voltage (DC) | 350 V |
| Capacitance Tolerance | ±20% (typical) |
| Polarity | Polarized (Electrolytic) |
| Operating Temperature Range | -40°C to +85°C |
| Leakage Current | ≤ 8 µA after 2 minutes |
| ESR (Equivalent Series Resistance) | Low to moderate |
| Dimensions (Approx.) | 6 mm (Dia.) × 15–19 mm (H) ‘ |
| Lead Spacing | 2 mm to 2.5 mm |
| Applications | Filtering, smoothing, coupling, decoupling |
| Mounting Type | Through Hole |
| RoHS Compliant | Yes |
