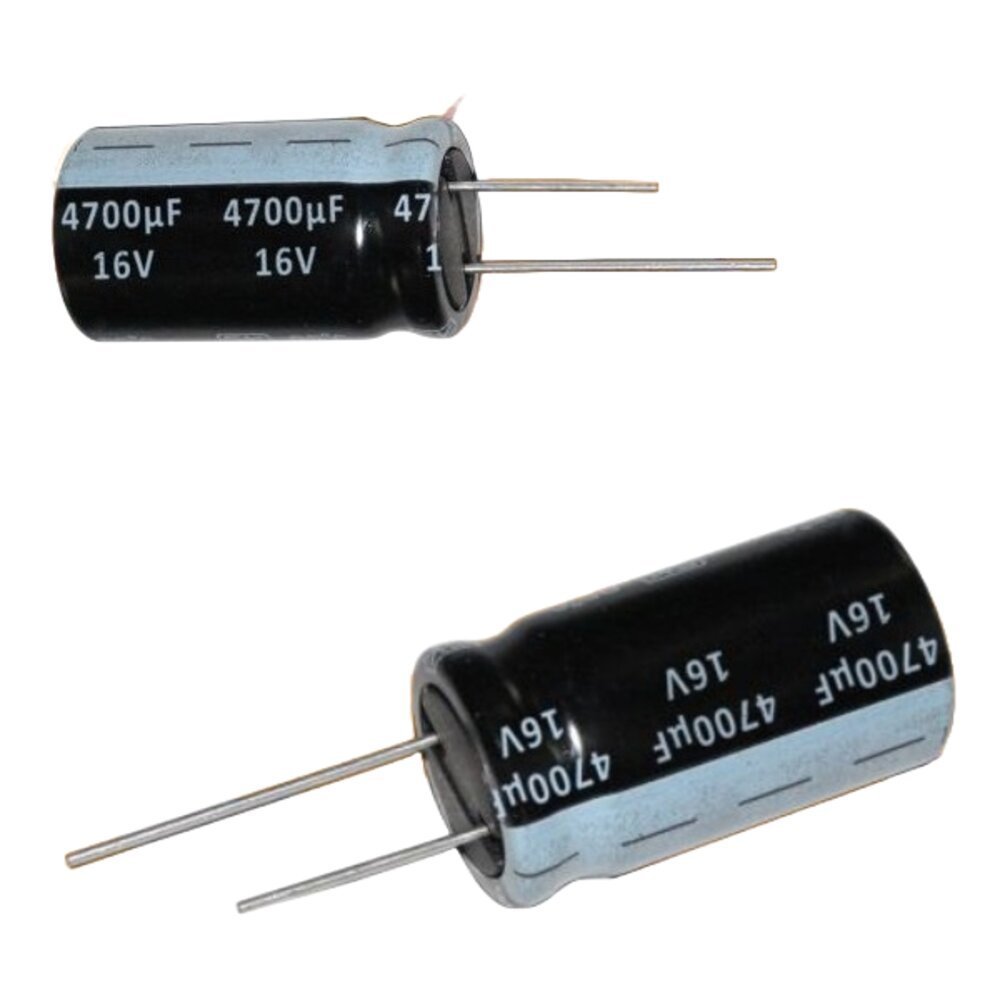

Electrolytic capacitor 4700µF/16V
The 4700µF 16V electrolytic capacitor stores energy and filters voltage in low-voltage circuits. It works well in DC power supplies, LED drivers, and audio equipment. The aluminum construction ensures stable performance and long operating life. It handles high ripple current and smooths voltage effectively. You can mount it easily on a through-hole PCB. Polarity markings help you install it correctly. A built-in safety vent protects the capacitor under fault conditions. Its compact size fits tight circuit layouts. It operates from –40°C to +105°C. RoHS compliance makes it safe for use in eco-friendly designs. Choose it for high capacitance in a compact package.
| Parameter | Value |
|---|---|
| Capacitance | 4700 µF |
| Rated Voltage | 16 V DC |
| Capacitance Tolerance | ±20% |
| Polarity | Polarized |
| Operating Temperature | –40°C to +105°C |
| ESR (Typical) | 0.02 – 0.05 Ω (varies by model) |
| Ripple Current (120 Hz) | ~2.8 – 3.5 A RMS (typical) |
| Lead Spacing | 5 mm or 7.5 mm ‘ |
| Case Size (Example) | 16 mm (D) × 31.5 mm (H) or 18 × 35 mm |
| Mounting Type | Through-hole |
| Shelf Life | 2000 hours @ 105°C |
| Compliance | RoHS compliant |
