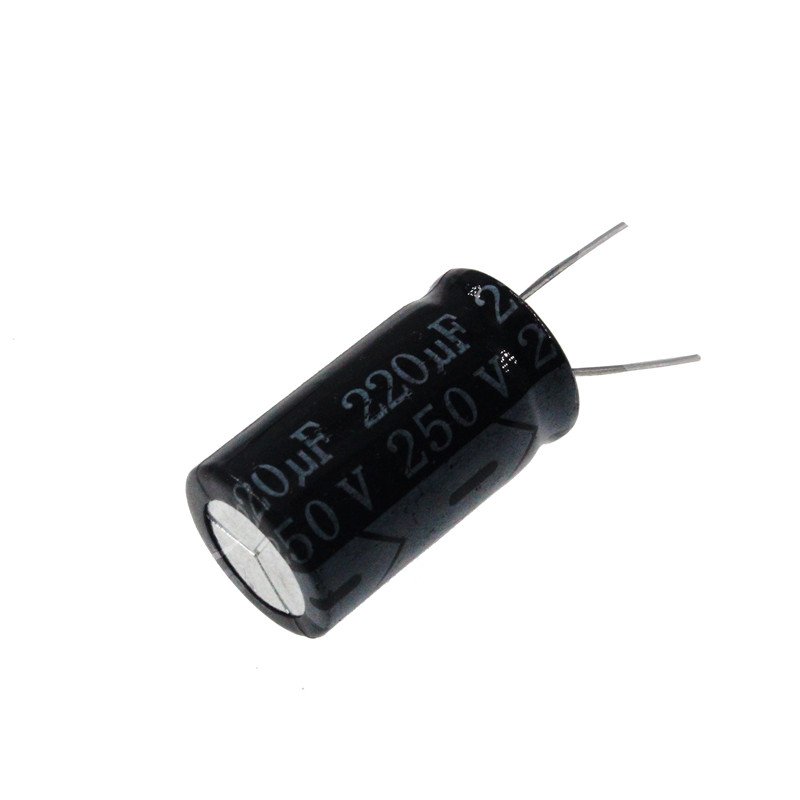

Electrolytic capacitor 220µF/250V
The 220µF 250V electrolytic capacitor is built for high-voltage power circuits. It stores and smooths energy in industrial and consumer electronics. Use it in power supplies, inverters, and motor control systems. Its aluminum electrolytic design ensures stable performance. It has a clearly marked Polarity to prevent installation errors. It supports high ripple current and withstands voltage stress. The compact cylindrical body mounts easily to through-hole PCBs. It operates across a wide temperature range, from -40°C to +105°C. A pressure-relief vent enhances safety during overload. The capacitor meets RoHS standards. Choose it for reliable performance in demanding, high-voltage applications.
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Rated Voltage | 250 V DC |
| Capacitance Tolerance | ±20% |
| Polarity | Polarized |
| Operating Temperature | -40°C to +105°C |
| ESR (Typical) | 0.5 – 0.9 Ω (depends on model) ‘ |
| Ripple Current (120Hz) | ~950–1100 mA (RMS, typical) |
| Lead Spacing | 7.5 mm or 10 mm (varies by type) |
| Case Size (Example) | 18mm (D) x 40mm (H) |
| Mounting Type | Through-hole |
| Shelf Life | 2000 hours @ 105°C |
| Compliance | RoHS compliant |
