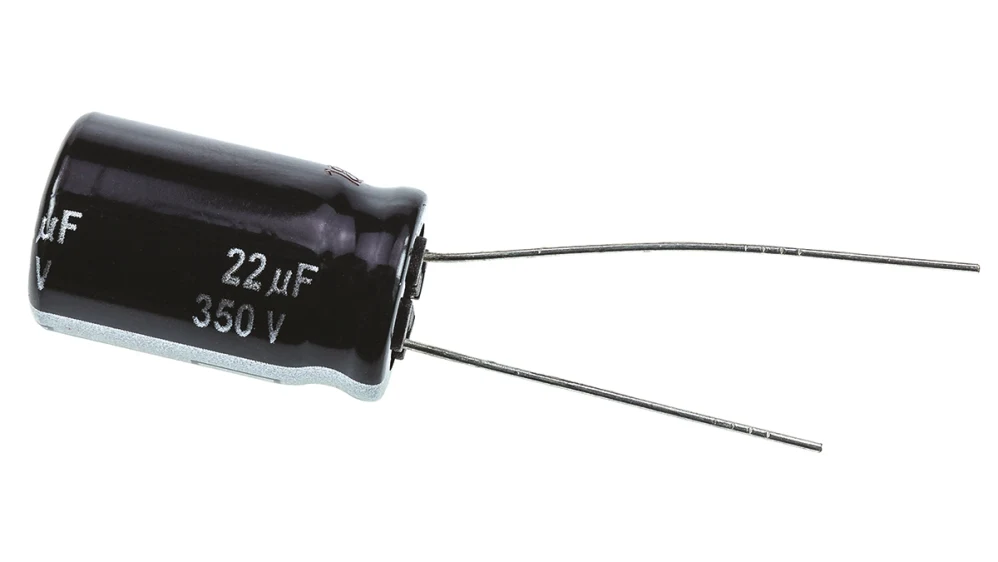

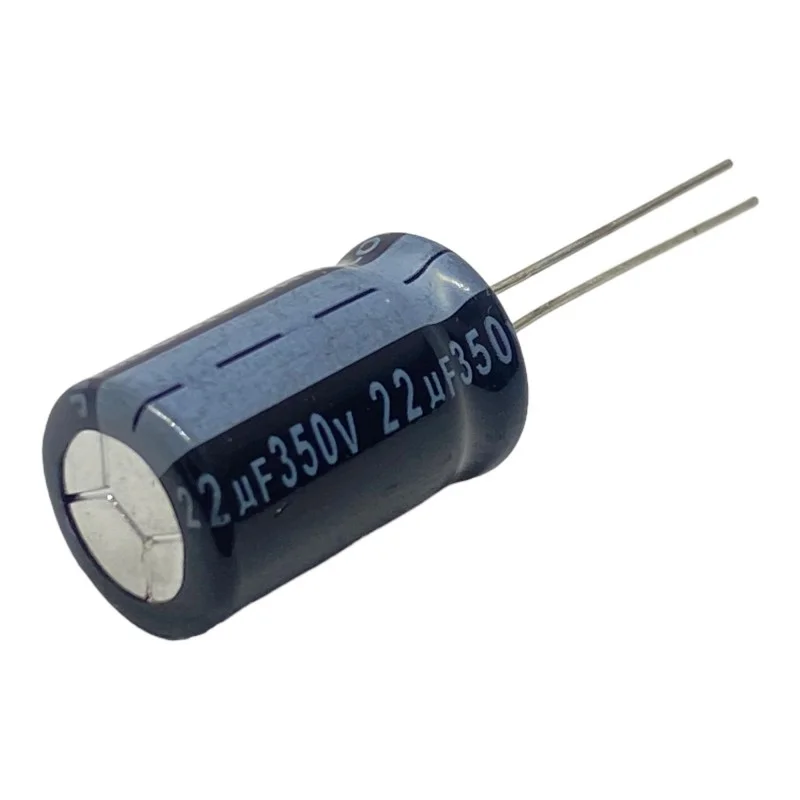

Electrolytic Capacitor 22µF/350V
The Electrolytic Capacitor 22µF 350V is strong and reliable. It is polarized and works in DC circuits. Use it to filter and smooth voltage. helps reduce ripple and blocks unwanted noise. also couples and decouples signals. This capacitor handles up to 350 volts. provides stable and safe performance. protects sensitive parts from voltage spikes. It keeps voltage steady and signals clean. Its compact size saves board space. mounts easily on PCBs and breadboards. Use it in power supplies and audio systems. It works well in amplifiers too. Perfect for repairs and high-voltage projects. Trusted by hobbyists and professionals. It delivers dependable results for demanding applications.
| Parameter | Value |
|---|---|
| Capacitance | 22 µF |
| Rated Voltage (DC) | 350 V |
| Capacitance Tolerance | ±20% (typical) |
| Polarity | Polarized (Electrolytic) |
| Operating Temperature Range | -40°C to +85°C |
| Leakage Current | ≤ 18 µA after 2 minutes |
| ESR (Equivalent Series Resistance) | Low to moderate |
| Dimensions (Approx.) | 8 mm (Dia.) × 22–26 mm (H) ‘ |
| Lead Spacing | 3 mm |
| Applications | Filtering, smoothing, coupling, decoupling |
| Mounting Type | Through Hole |
| RoHS Compliant | Yes |
