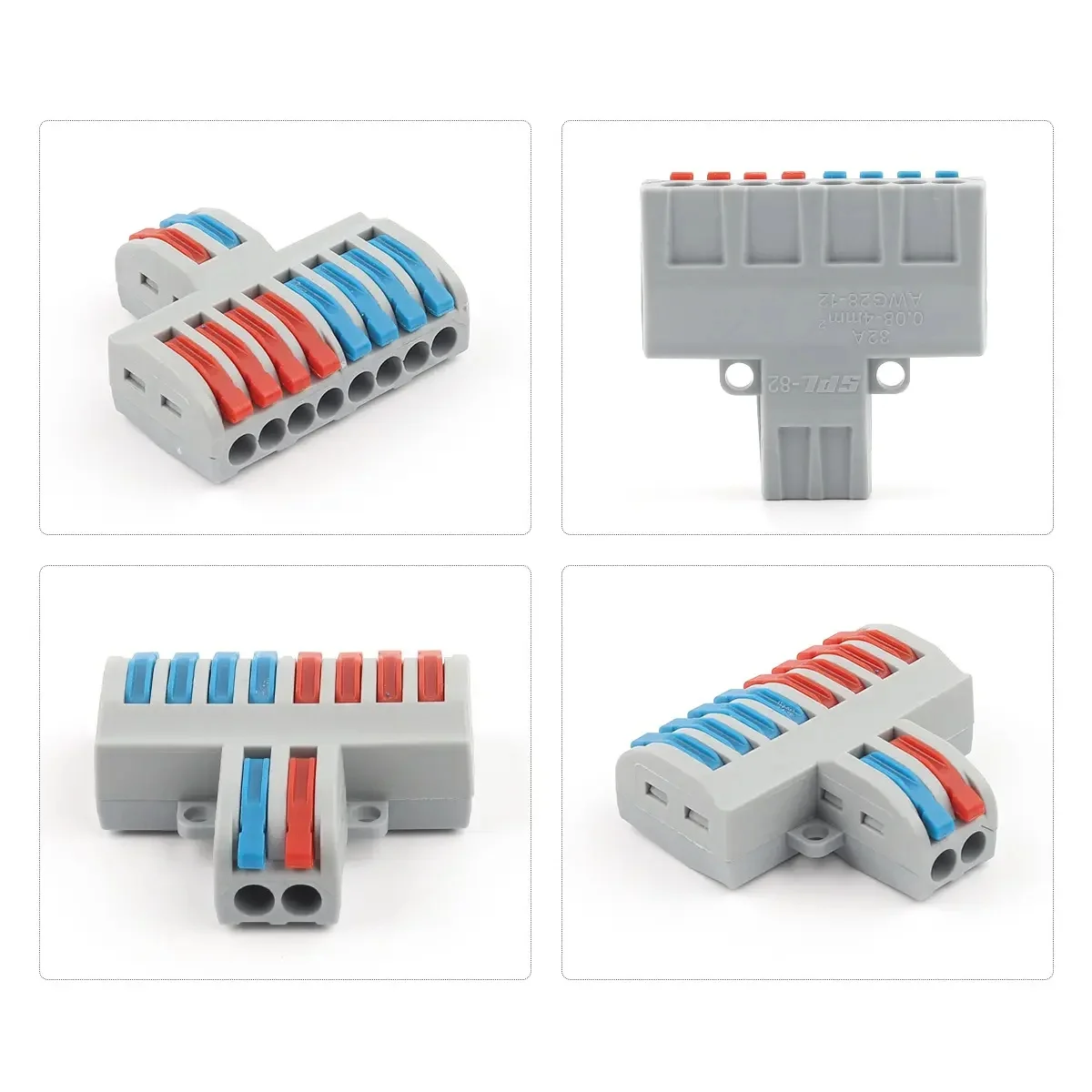

WAGO Connector SPL-82 (2 In 8 Out)
The WAGO Connector SPL-82 (2 In 8 Out) is a reliable multi-way push-wire connector designed for safe and efficient power branching in electrical systems. It connects two input conductors and distributes power simultaneously to eight output conductors, making it ideal for complex branching in lighting circuits, multi-point outlets, and distribution panels. Using WAGO’s proven push-in spring clamp technology, it ensures secure, vibration-resistant connections without any twisting, soldering, or special tools. Just push the wires in and you’re done! The SPL-82’s compact size helps maintain neat, organized wiring inside junction boxes, and its flame-retardant construction ensures safety under demanding conditions. Whether for professional installations or DIY projects, this connector makes power distribution fast, tidy, and easy to maintain or expand.
Key Features
2 In 8 Out Design: Connects two inputs and splits power to eight outputs.
Push-Wire Spring Clamp: Fast, tool-free, and secure connection.
Compact & Space-Saving: Fits easily in tight enclosures.
Reusable: Wires can be removed and reconnected easily.
Transparent Housing: Visual confirmation of correct wire seating.
Flame-Retardant: High-quality material for safe, durable performance.
Specifications
Model: WAGO SPL-82 (2 In 8 Out).
Connection Method: Push-wire spring clamp.
Input Terminals: 2.
Output Terminals: 8.
Wire Size Range:
Solid: 0.5–2.5 mm²
Stranded: 0.5–2.5 mm²
Rated Voltage: 250 V AC.
Rated Current: Up to 32 A.
Housing Material: Flame-retardant plastic.
Operating Temperature: -40 °C to +85 °C.
Certifications: CE, RoHS, VDE (region dependent).
Applications
Splitting power from two sources to multiple devices.
Wiring multiple lights or outlets from common inputs.
Clean branching inside junction boxes and panels.
Residential or commercial circuit distribution.
Temporary or easily adjustable wiring setups.
| Parameter | Specification |
|---|---|
| Inputs / Outputs | 2 inputs to 8 outputs – |
| Rated Voltage | 250 V AC (some list up to 220 V; peak rating 600 V) |
| Rated Current | 32 A |
| Power Rating | ~6 kW |
| Wire Range | Solid/Stranded: 0.08–4 mm²; Fine‑stranded: up to 2.5 mm² |
| Strip Length | 9–10 mm |
| Housing Material | Flame‑retardant PA/PC engineering plastic |
| Contact Material | Pure copper with spring/steel mechanism |
| Operating Temp | –20 °C to +85 °C (typical) |

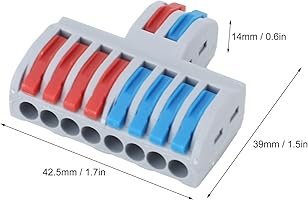

| Dimensions | Approx. 42.5 × 39 × 14 mm |
| Mounting | Free‑hanging, straight orientation |
