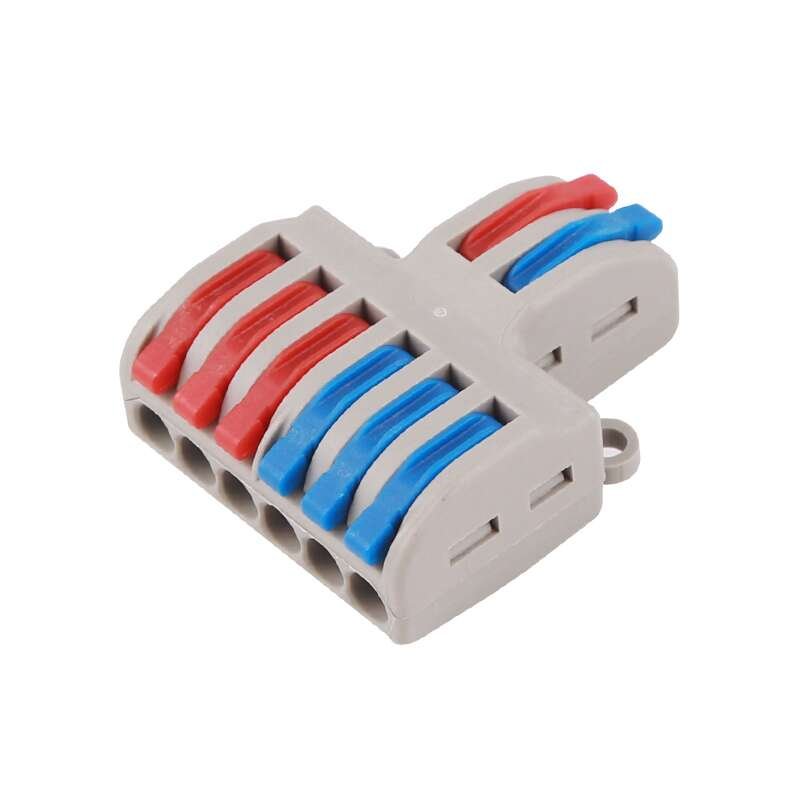

WAGO Connector SPL-62 (2 In 6 Out)

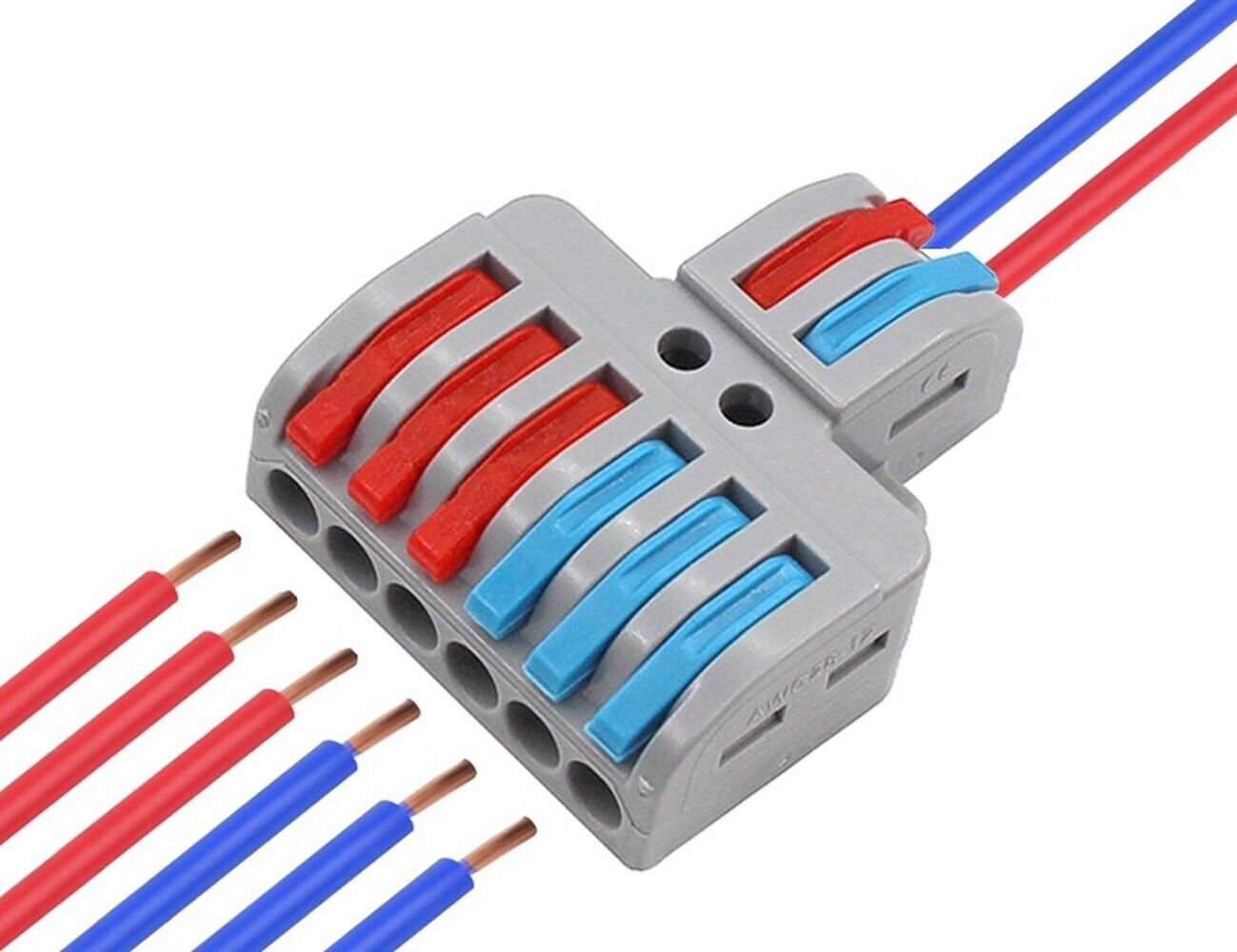

The WAGO Connector SPL-62 (2 In 6 Out) is a smart multi-way push-wire connector designed for efficient and safe power distribution and branching. It connects two input wires and distributes the power to six output wires simultaneously — perfect for branching circuits in junction boxes, lighting grids, or power distribution panels. The SPL-62 uses WAGO’s proven push-in spring clamp technology, allowing fast, tool-free installation and secure connections without twisting or soldering. Its compact size saves valuable space in electrical enclosures, and the flame-retardant body ensures durability and safety under various operating conditions. Whether you’re an electrician or a DIY enthusiast, the SPL-62 makes wiring neater, faster, and easier to maintain or expand when needed.
Key Features
2 In 6 Out Design: Connects 2 input wires and splits them to 6 outputs.
Push-Wire Spring Clamp: Quick, reliable, and vibration-proof connections.
Compact & Space-Saving: Ideal for tight junction boxes.
Tool-Free Wiring: No soldering or twisting needed.
Reusable: Wires can be easily disconnected and reconnected.
Durable Housing: Flame-retardant, high-quality plastic for safety.
Specifications
Model: WAGO SPL-62 (2 In 6 Out).
Connection Method: Push-wire spring clamp.
Input Terminals: 2.
Output Terminals: 6.
Wire Size Range:
Solid: 0.5–2.5 mm²
Stranded: 0.5–2.5 mm²
Rated Voltage: 250 V AC.
Rated Current: Up to 32 A.
Housing Material: Flame-retardant plastic.
Operating Temperature: -40 °C to +85 °C.
Certifications: CE, RoHS, VDE (region dependent).
Applications
Branching power from 2 sources to multiple outputs.
Distributing power to several lights or devices.
Neat connections in junction boxes and distribution panels.
Residential or commercial wiring.
Temporary or prototype wiring setups.
WAGO SPL‑62 – Technical Specifications
| Parameter | Specification |
|---|---|
| Inputs / Outputs | 2 inputs to 6 outputs |
| Rated Voltage | 250 V AC (some listings up to 400 V or 600 V peak) – |
| Rated Current | 32 A |
| Power Rating | 4–7 kW (varies by model/supplier) |
| Wire Range | Solid/Stranded: 0.08–2.5 mm² (AWG 28–14); fine-stranded to 4 mm² (AWG 12) ‘ |
| Strip Length | 9–10 mm |
| Housing Material | Flame-retardant polycarbonate or PA66 |
| Contact Material | Pure copper with spring mechanism/stainless steel |
| Operating Temp | –20 °C to +85 °C (typical) |

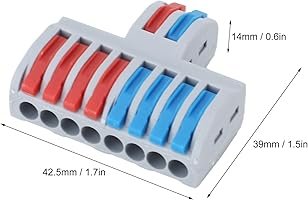

| Dimensions | Approx. 39 × 34 × 14.5 mm (varies slightly) |
| Mounting | Free-hanging terminal (no DIN rail) |
| Strip Length | 9–10 mm |
