WAGO Connector PCT-218 (8 Pin)
The WAGO Connector PCT-218 (8 Pin) is a high-capacity lever-operated push-wire connector designed to simplify complex wiring tasks for up to eight wires. It is perfect for parallel or branch wiring in large junction boxes, multi-way lighting systems, and distribution panels where multiple conductors need to be connected quickly and safely.
Using WAGO’s trusted lever clamp technology, you simply lift the levers, insert the stripped wires, then close the levers to secure them in place — no tools, twisting, or soldering needed. The transparent housing allows visual confirmation of proper wire seating, ensuring maximum safety and installation confidence. Reusable and compact despite its capacity, the PCT-218 is a must-have for electricians handling larger circuit connections and for projects where neatness and flexibility are crucial.
Key Features
8 Pin Terminal Block: Connects up to eight wires in parallel or branch configurations.
Lever-Operated Clamp: Fast, tool-free connection and disconnection.
Wide Wire Compatibility: Accepts solid, stranded, and fine-stranded conductors.
Transparent Housing: Inspect wire insertion visually for safety.
Reusable: Open the levers anytime to reconfigure or adjust connections.
Compact & Robust: Space-saving design with vibration-resistant spring clamp contact.
Specifications
Model: WAGO PCT-218 (8 Pin).
Connection Method: Push-wire with lever operation.
Number of Terminals: 8.
Wire Size Range:
Solid: 0.2–4 mm²
Stranded: 0.2–4 mm²
Fine-stranded: 0.14–4 mm²
Rated Voltage: Up to 450 V AC.
Rated Current: Up to 32 A.
Housing Material: High-grade flame-retardant transparent plastic.
Operating Temperature: -40 °C to +85 °C.
Certifications: CE, UL, VDE (varies by region).
Applications
Connecting multiple wires in larger junction boxes.
Complex branch wiring in lighting or power circuits.
Distribution board wiring where many conductors meet.
Fast, reusable connections for industrial, commercial, or residential use.
Temporary, prototype, or frequently modified circuits
| Parameter | Specification |
|---|---|
| Model | PCT‑218 (8‑pole) – |
| Number of Pins | 8 |
| Rated Voltage | 250 V AC/DC (some sources note 220 V) |
| Rated Current | 32 A |
| Rated Power | ~4 kW–7 kW (32 A × 250 V = 8 kW; spec called “7 kW”) |
| Wire Size Range | 0.08–2.5 mm² solid; 0.08–4 mm² stranded; AWG 28–12 |
| Strip Length | 9–12 mm (some say 11–12 mm) |
| Housing Material | Flame‑retardant nylon (PA66/PC) |
| Conductive Contact | Electrolytic or stainless steel copper alloy |
| Spring Mechanism | Spring‑lever push‑in, lever‑actuated |

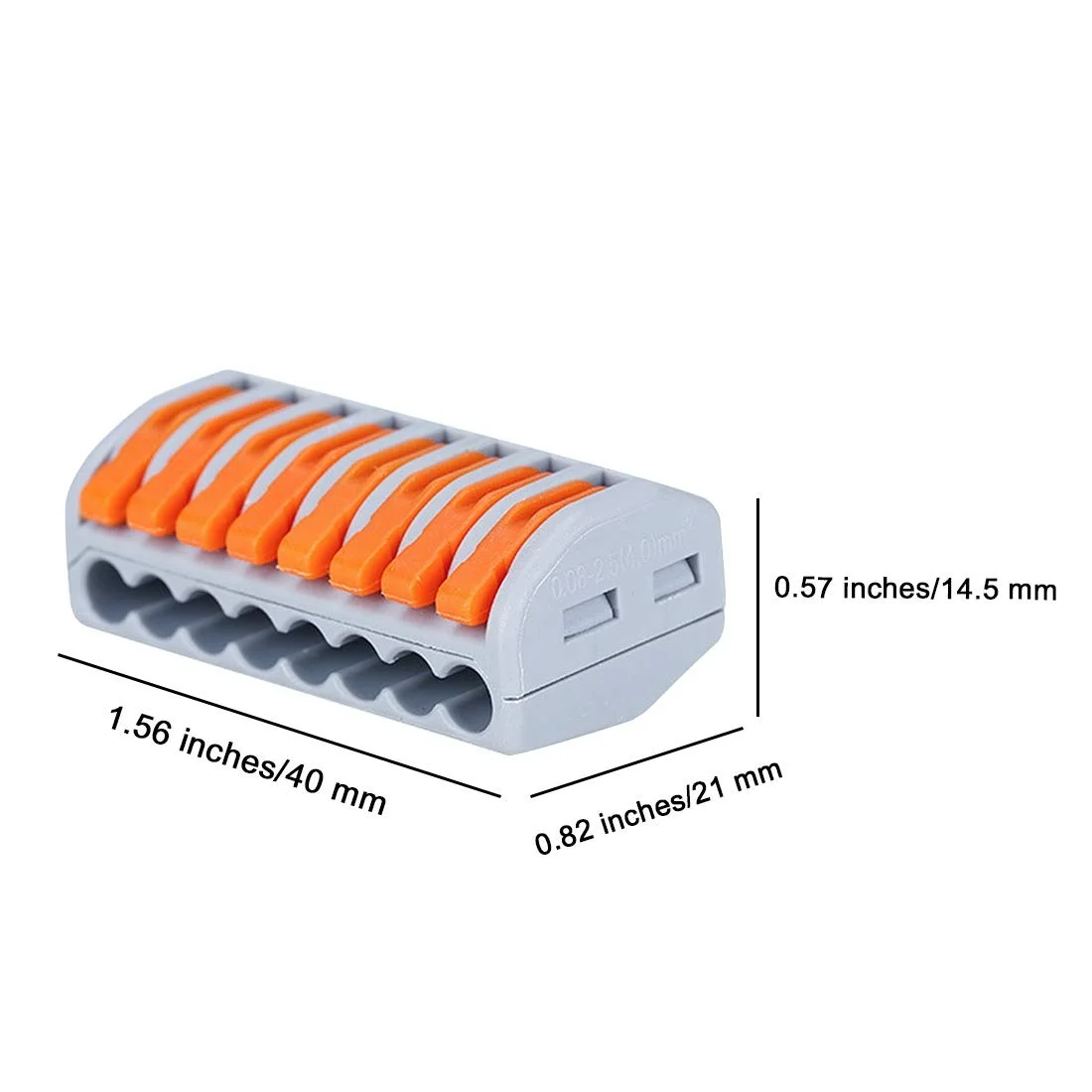

| Dimensions (L×W×H) | ~41 × 20.5 × 14.5 mm |
| Operating Temperature | –20 °C to +80 °C |
