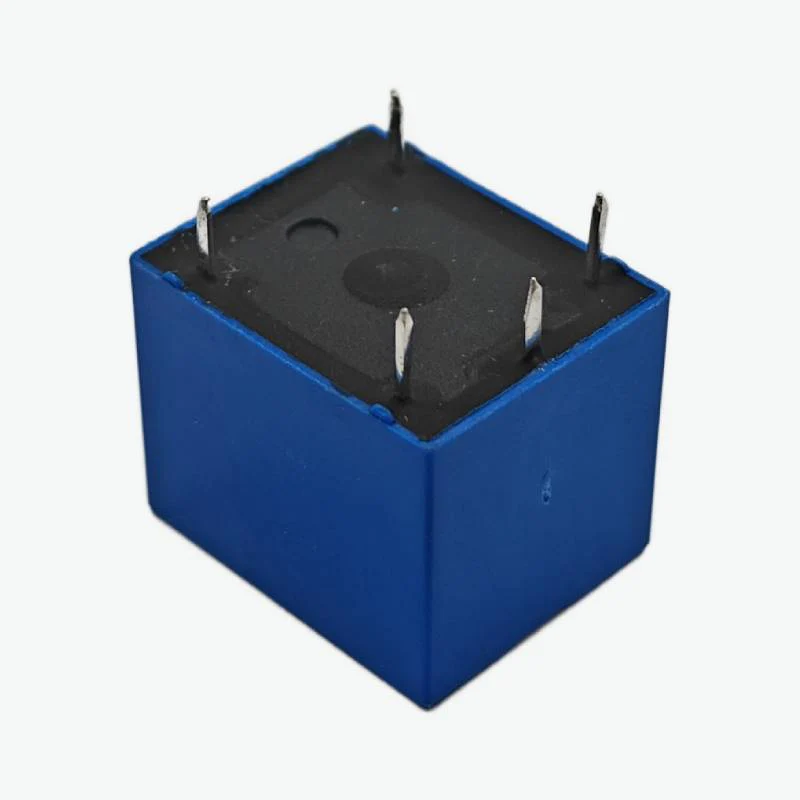

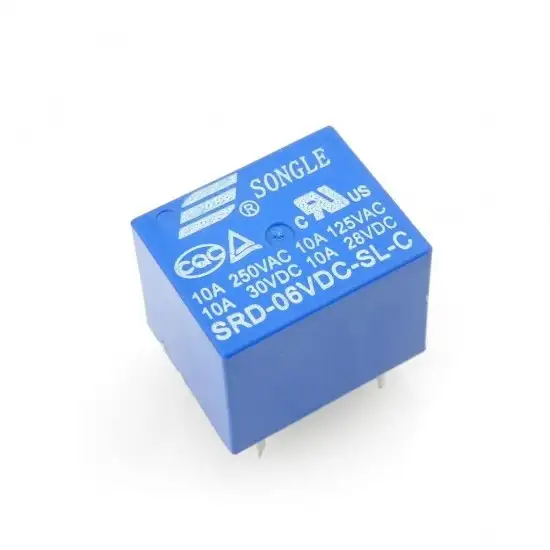

SPDT General Purpose Power Relay, 6VDC Coil, 10A, 5-Pin
The General Purpose Relay SPDT (1 Form C) 6VDC Coil 10A Through Hole 5 Pin offers dependable switching performance for a wide range of control and automation circuits. It uses a single pole double throw (SPDT) contact configuration, allowing users to switch one input between two outputs efficiently.
Designed with a 6VDC coil voltage and 10A current rating, this relay is well-suited for both low-voltage and higher-current applications. The 5-pin through-hole package makes it easy to integrate onto PCBs while maintaining mechanical strength and stable electrical connections.
This relay is commonly applied in power management, automation, control systems, appliances, and DIY electronics projects where reliable isolation and switching are needed.
Key Features
SPDT (1 Form C) contact for flexible switching.
6VDC coil ensures reliable and consistent actuation.
Handles up to 10A switching capacity with ease.
5-pin through-hole package for secure mounting.
Compact design supports PCB and general electronics use.
Provides reliable isolation between control and load circuits.
Long mechanical life for repeated switching operations.
Applications
Switching loads in automation and control systems.
Power management circuits in appliances and devices.
DIY electronics and embedded projects requiring relay control.
Low-voltage circuit isolation and switching.
Automotive and industrial control panel integration.
Home automation relay switching applications.
Specifications
| Parameter | Value |
|---|---|
| Relay Type | General Purpose SPDT (1 Form C) |
| Coil Voltage | 6VDC |
| Contact Rating | 10A ‘ |
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Number of Pins | 5 (Through-Hole) |
| Mounting Type | PCB Through-Hole |
| Applications | Control, automation, switching |
