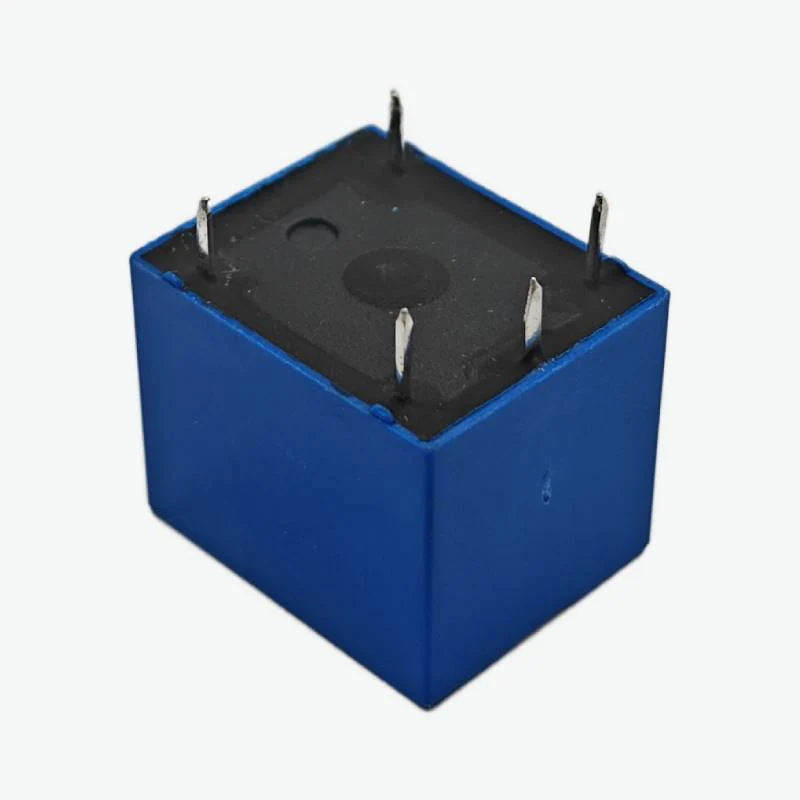

SPDT General Purpose Power Relay, 24VDC Coil, 12A, 5-Pin
The SPDT General Purpose Power Relay, 24VDC Coil, 12A, 5-Pin is a reliable switching device built to control medium-to-high current loads in electronic and electrical circuits. With its Single Pole Double Throw (SPDT) contact arrangement, it allows one input signal to control two output paths, making it flexible for routing power across different loads or switching between alternate circuits.
Operating with a 24VDC coil, this relay suits systems where higher control voltage is preferred, such as industrial automation, power distribution panels, and large-scale electronic controllers. The coil ensures precise switching and dependable performance even in demanding environments, while the 12A contact capacity allows safe handling of larger loads like motors, pumps, and solenoids. The 5-pin through-hole package provides secure PCB mounting, offering mechanical stability and easy integration into printed circuit boards.
Key Features
Provides SPDT switching flexibility for controlling multiple circuits easily.
Operates with a stable 24VDC coil for dependable performance.
Handles up to 12A load current for medium-to-high power needs.
Secures firmly on PCBs using a 5-pin through-hole design.
Offers reliable electrical isolation between control and load sides.
Features robust construction for durability and extended operational life.
Works across a wide range of power and automation applications.
Applications
Manages power switching in industrial control and automation systems.
Drives small motors, fans, and pumps in higher voltage applications.
Controls household or office appliances with reliable current handling.
Provides isolation and load control in renewable energy installations.
Supports smart home projects requiring dependable switching operations.
Integrates into automotive and transportation equipment for power control.
Serves in embedded electronics for switching medium-current devices safely.
Specifications
| Parameter | Value |
|---|---|
| Relay Type | General Purpose SPDT (1 Form C) |
| Coil Voltage | 24VDC |
| Contact Rating | 12A ‘ |
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Number of Pins | 5 (Through-Hole) |
| Mounting Type | PCB Through-Hole |
| Isolation | Control side to load isolation |
| Applications | Power control, automation, appliances, automotive |
