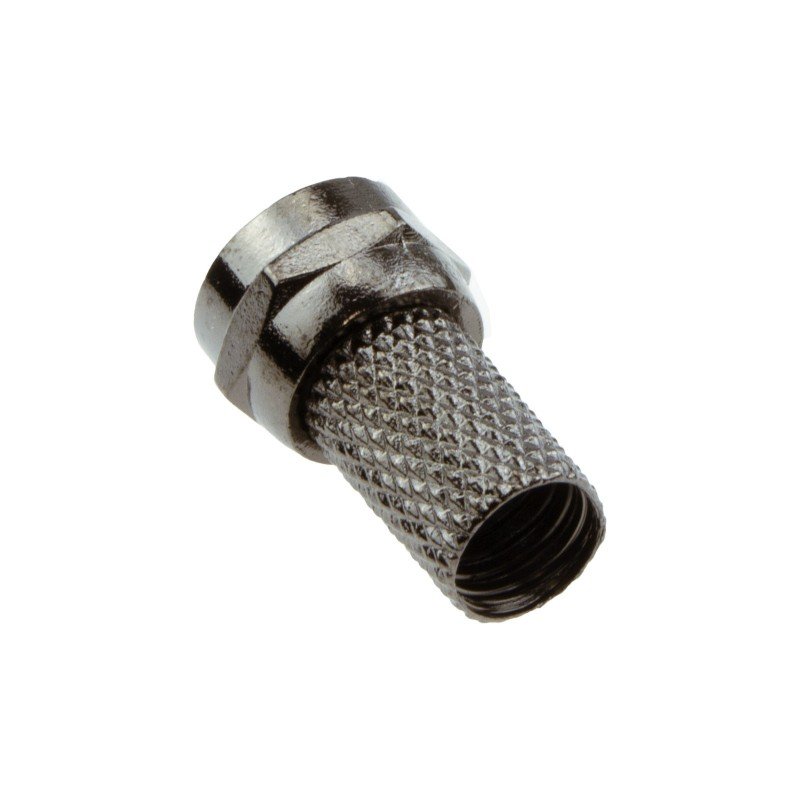

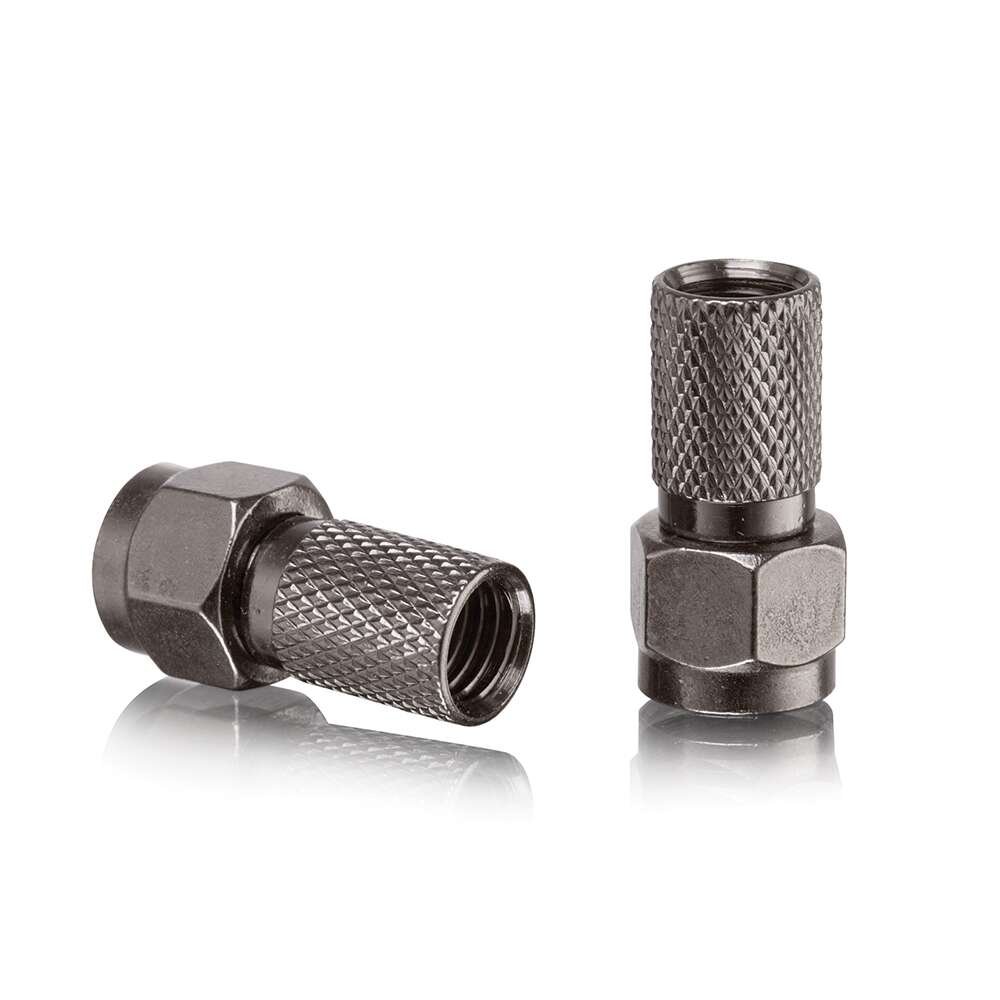

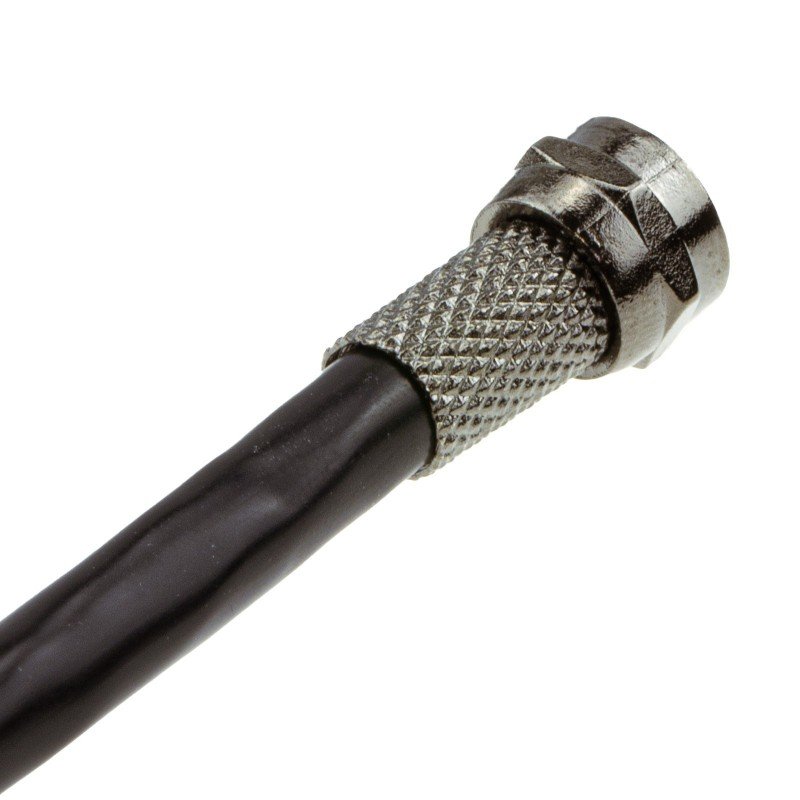

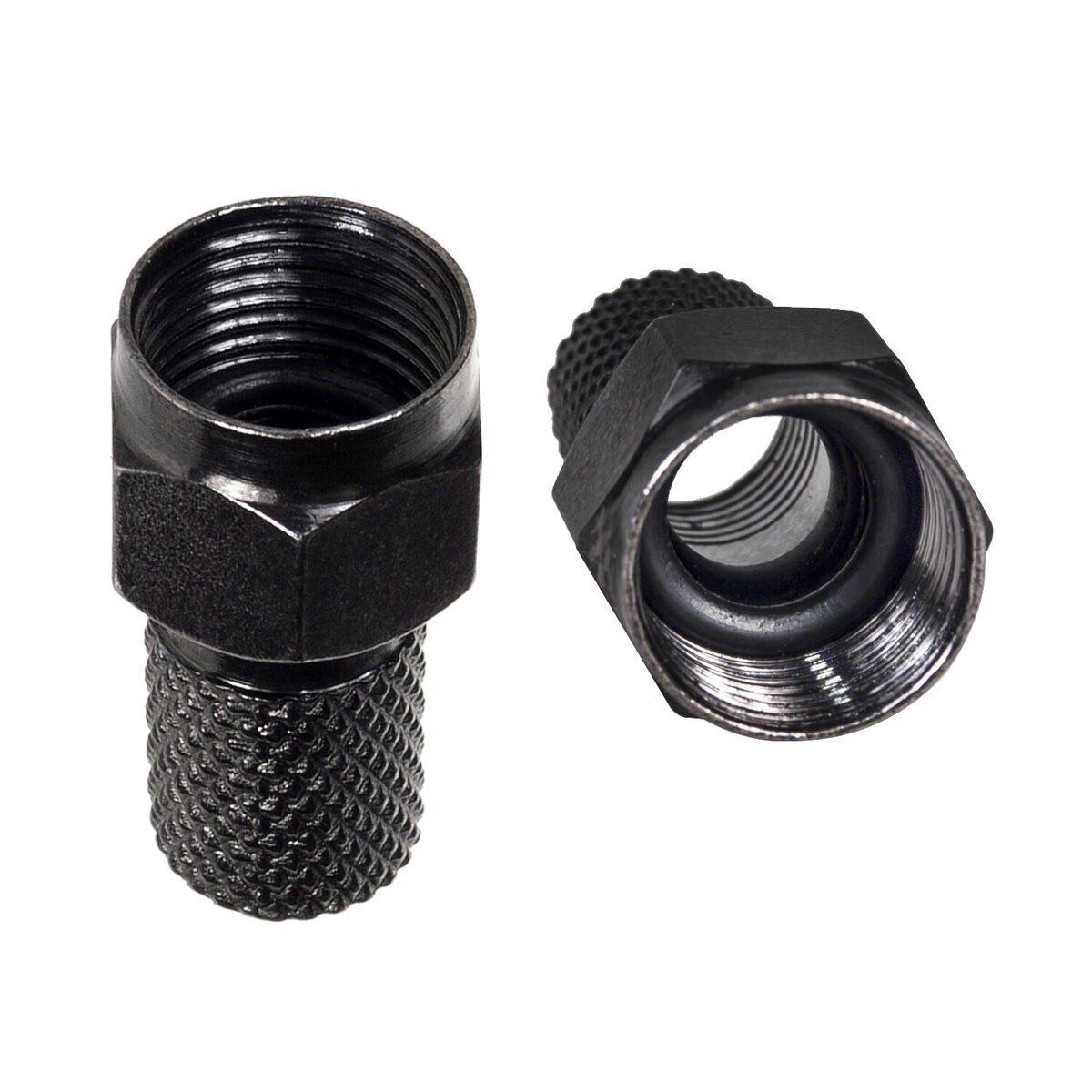

RG6 F-Type Coaxial Cable Connector
The RG6 F-Type Coaxial Cable Connector is a high-performance connector designed for terminating RG6 coaxial cables quickly and securely. It provides a robust, low-loss connection for transmitting high-frequency signals with minimal interference, making it ideal for TV antennas, satellite systems, cable modems, CCTV installations, and other RF signal applications. The F-Type connector features a threaded coupling mechanism that ensures a stable, vibration-resistant connection, maintaining signal integrity even in challenging conditions. Its nickel-plated body resists corrosion and ensures a long service life. Simple to install with standard compression or crimping tools, this connector is a staple for professional installers and DIY enthusiasts alike, guaranteeing clear audio and video transmission over coaxial lines.
Key Features
Compatible with RG6 Coaxial Cable: Perfect fit for standard RG6 cables.
F-Type Threaded Design: Ensures secure, stable connection.
Low Signal Loss: High-frequency performance with minimal interference.
Corrosion-Resistant: Nickel-plated for durability and long life.
Easy Installation: Supports crimp or compression mounting methods.
Universal Use: Widely used for satellite, TV, broadband, and CCTV.
Specifications
Type: F-Type Male Connector.
Cable Type: RG6 Coaxial Cable.
Connection Method: Crimp or compression.
Material: Nickel-plated brass body.
Impedance: 75 Ohms.
Frequency Range: Up to 3 GHz.
Coupling Mechanism: Threaded.
Operating Temperature: -40°C to +85°C.
Certifications: RoHS compliant.
Applications
Connecting TV antennas and satellite dishes.
Cable TV and broadband internet setups.
CCTV camera coaxial connections.
RF signal distribution in residential and commercial buildings.
Home theater and media equipment installations
| Parameter | Specification |
|---|---|
| Connector Type | F-Type Male Plug |
| Cable Compatibility | RG6 Coaxial Cable (75 Ohm) |
| Impedance | 75 Ohms |
| Frequency Range | Up to 3 GHz (typical: DC–1 GHz for TV/SAT) – |
| Insertion Loss | ≤ 0.1 dB |
| Return Loss | ≥ 20 dB |
| Connector Material | Nickel-plated or gold-plated brass |
| Dielectric | PTFE or PE |
| Attachment Method | Compression, crimp, or twist-on (varies by model) |
| Waterproofing | Some models have rubber O-ring or gasket |
| Operating Temperature | –40 °C to +60 °C |
