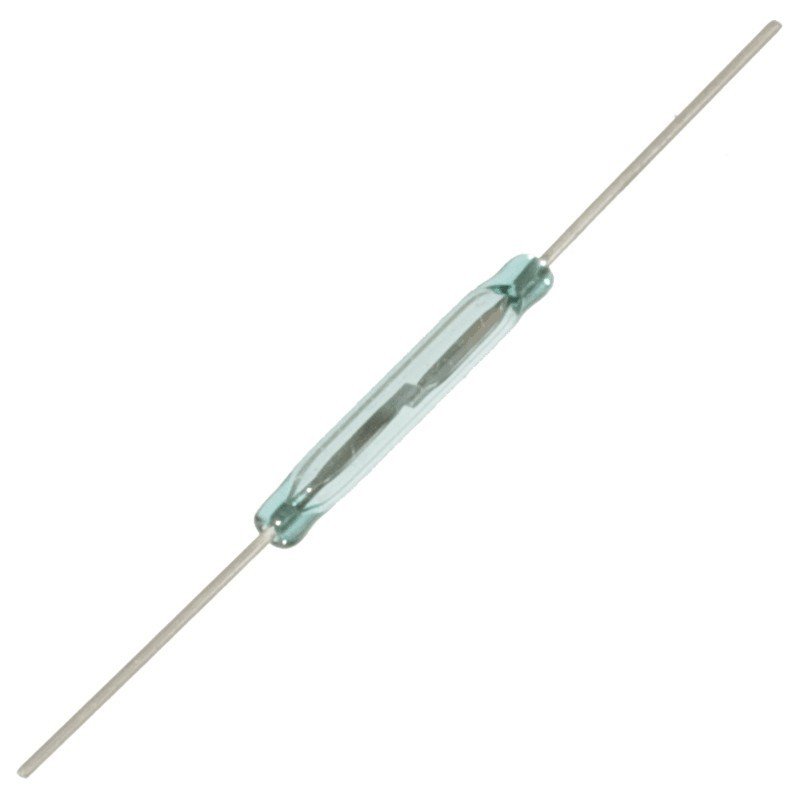

The Reed Switch (Magnetic Switch) N.O is a simple yet highly reliable electronic component designed to detect the presence of a magnetic field. It operates as a Normally Open (N.O) contact, which means the circuit remains open until a magnetic force brings the contacts together. This switching behavior makes it ideal for use in alarm systems, automation, robotics, and general electronics projects. The device features a sealed glass tube construction that protects the internal metal reeds, ensuring long-lasting durability and consistent performance even under varying environmental conditions.

How It Works

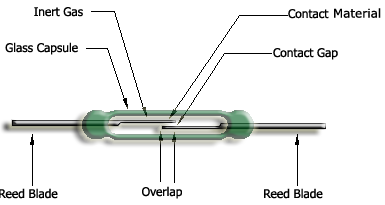

The Reed Switch consists of two ferromagnetic metal contacts (reeds) sealed inside a small glass envelope. In its normal state, the contacts remain open, preventing current flow. When a magnetic field approaches, the reeds become magnetized and attract each other, closing the circuit and allowing current to pass. Once the magnetic field is removed, the contacts return to their open state. This simple, contact-based operation requires no external power, consumes no standby energy, and offers a fast response time, making it a highly efficient sensor solution.

Key Features

• Normally Open (N.O) contact configuration

• Compact and lightweight design

• Sealed glass tube for durability

• High sensitivity to magnetic fields

• Long operational life cycle

• Low contact resistance for reliable switching

• No external power required

Specifications

Pin Configuration

Applications

• Door and window security alarm systems

• Proximity and position detection in automation

• Robotics and mechatronics projects

• Automotive and industrial monitoring

• Fluid level detection using magnetic floats

• Speed and rotation measurement systems
