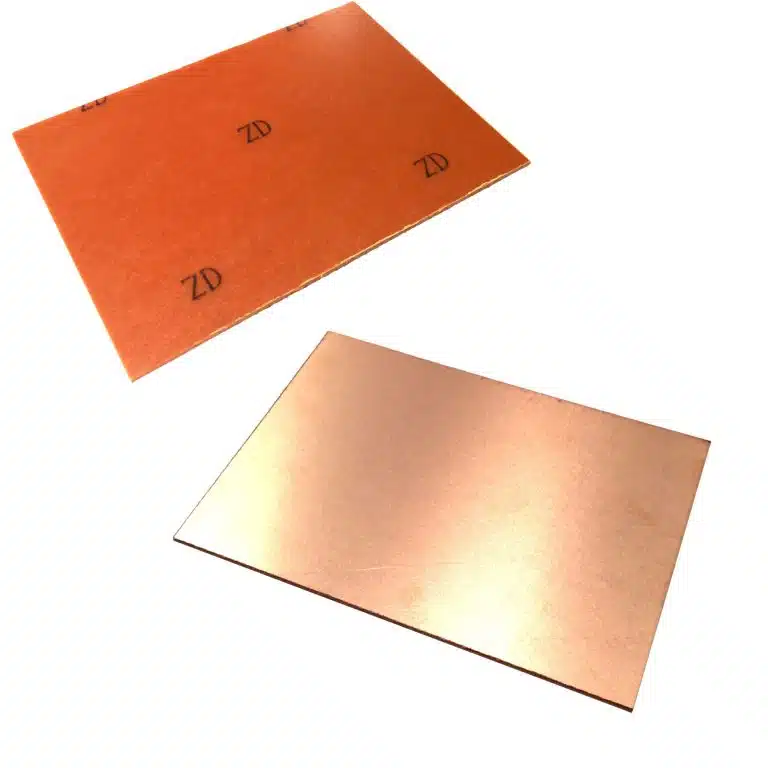

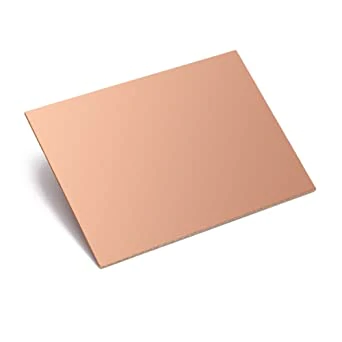

FR2 Phenolic Prototype PCB Board 9×15 cm, Plain, Single-Sided
The FR2 Phenolic Prototype PCB Board 9×15 cm, Plain, Single-Sided provides a versatile platform for circuit prototyping and design. Unlike line or dotted layouts, the plain copper surface allows complete flexibility, giving engineers and hobbyists full control to etch, cut, or customize tracks according to project requirements.
Constructed from durable FR2 phenolic resin, this board offers a balance of strength, light weight, and cost-effectiveness, making it an excellent choice for educational, professional, and DIY use. Its 9×15 cm area delivers generous working space for small to medium-scale projects, while the single-sided copper surface ensures straightforward soldering and circuit modification.This board is highly suitable for advanced users who prefer designing custom PCB layouts, as well as for training environments where students can practice etching and fabrication.
Key Features:
High-quality FR2 phenolic material ensures strong durability and reliability.
Plain copper surface allows flexible track design and customization.
Single-sided layout simplifies soldering and component placement.
Large 9×15 cm size offers generous working area for circuits.
Ideal for prototyping, circuit fabrication, and educational purposes.
Lightweight and compact, suitable for labs and workshops.
Applications:
Custom PCB layout creation for specialized electronic projects.
Educational use for teaching circuit etching and fabrication.
DIY hobbyist projects requiring full design flexibility.
Prototyping small to medium-scale electronic devices.
Training tool for students learning advanced PCB techniques.
Specifications:
Board Material: FR2 phenolic resin
Dimensions: 9 × 15 cm
Surface Type: Plain copper clad
Sides: Single-sided copper layer
Thickness: Approx. 1.6 mm ‘
Hole Pitch: N/A (plain surface – no predefined holes)
Copper Clad Thickness: 1 oz (standard)
Weight: Lightweight, easy to cut and handle
