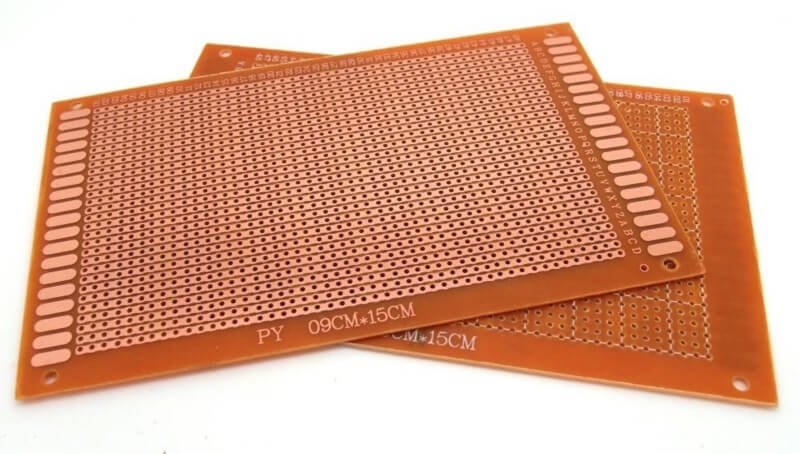

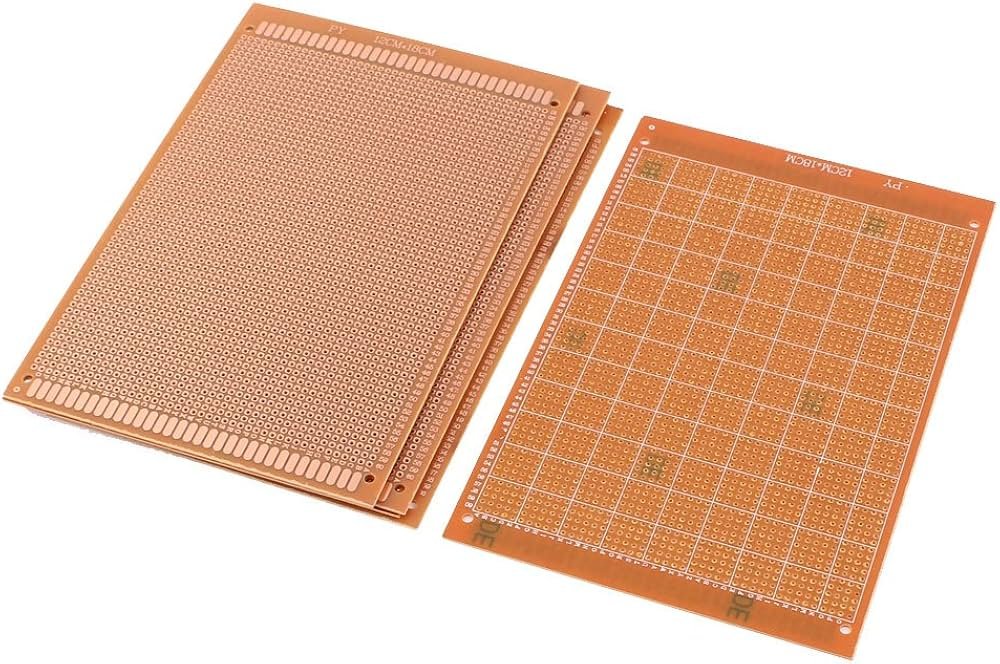

FR2 Phenolic Prototype PCB Board 9×15 cm, Line, Single-Sided
The FR2 Phenolic Prototype PCB Board 9×15 cm, Line, Single-Sided provides a reliable platform for creating and testing electronic circuits. Its FR2 phenolic material ensures durability while remaining lightweight and easy to handle. The single-sided line pattern layout allows for structured circuit routing, making it highly convenient for both beginners and experienced designers.
This board works well for prototyping small to medium-scale projects, educational purposes, and DIY electronics. It resists wear and provides stable soldering points, ensuring strong connections. Its 9×15 cm size offers ample space to organize components while maintaining a compact footprint suitable for laboratory or workshop use.
Key Features:
Sturdy FR2 phenolic material with long-lasting performance.
Line pattern layout for easy circuit design and routing.
Single-sided copper surface for straightforward soldering work.
Large 9×15 cm area for versatile project applications.
Lightweight and compact design for convenient handling.
Excellent for educational, prototyping, and DIY electronics use.
Applications:
Prototyping and testing electronic circuits in labs.
DIY electronics hobby projects and experiments.
Circuit design training in educational environments.
Small and medium-scale electronic product development.
Repair and modification of electronic devices.
Specifications:
Board Material: FR2 phenolic resin
Dimensions: 9 × 15 cm
Layout Type: Line pattern
Sides: Single-sided copper clad
Thickness: Approx. 1.6 mm ‘
Hole Diameter: 1.0 mm (standard)
Hole Pitch: 2.54 mm (standard spacing)
Weight: Lightweight, easy to handle
