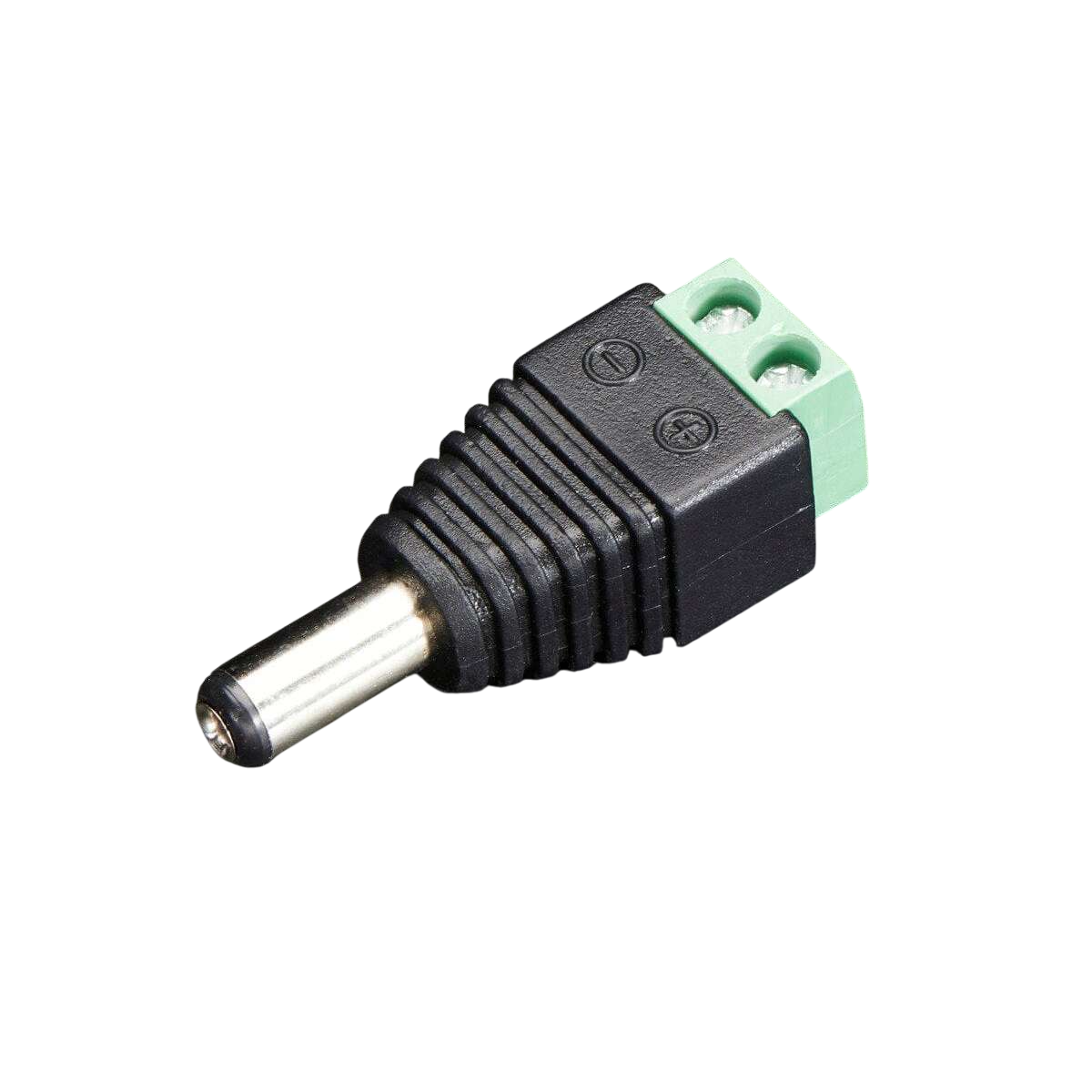

Male DC Jack Adapter with Terminal Block
The Male DC Jack Adapter with Terminal Block is a convenient, solderless solution for quickly connecting a DC power supply to bare wires or custom circuits. It features a standard 5.5mm x 2.1mm male DC barrel plug on one end and a secure two-screw terminal block on the other, allowing users to easily connect power cables without cutting or soldering. This adapter is perfect for prototyping, CCTV installations, LED strip connections, or any low-voltage DC power application where flexibility and quick setup are required. Its robust design ensures a solid connection and reliable power delivery.
Specifications
Connector Type: DC Male Barrel Plug to 2-Pin Screw Terminal Block.
Plug Size: Outer Diameter: 5.5mm, Inner Diameter: 2.1mm.
Maximum Voltage: Typically up to 24V DC (check product rating).
Current Rating: Up to 2-5A (depends on wire and application).
Housing Material: ABS Plastic.
Terminal Type: Brass or nickel-plated copper with screws.
Wire Compatibility: Suitable for stranded or solid wires, 22–16 AWG.
Operating Temperature: -20°C to +60°C
