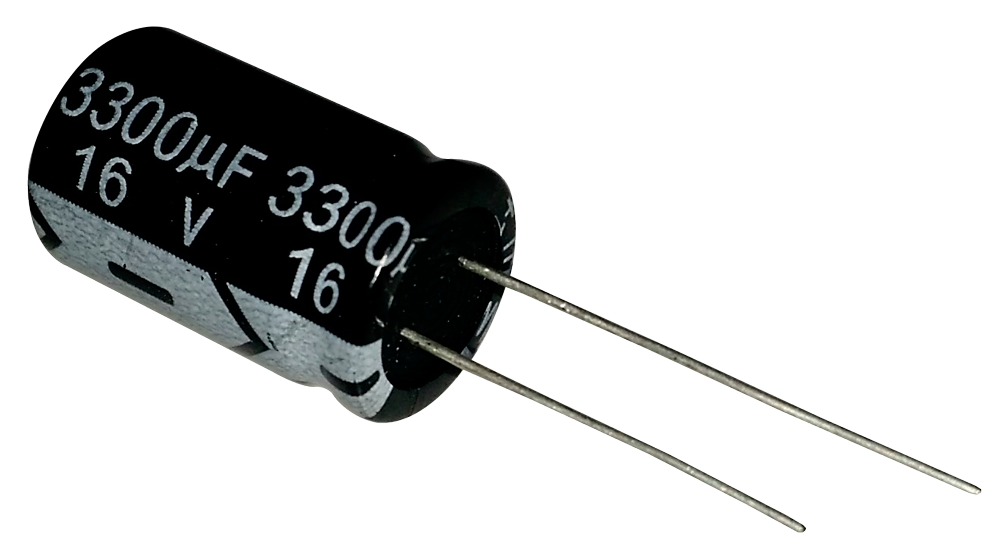

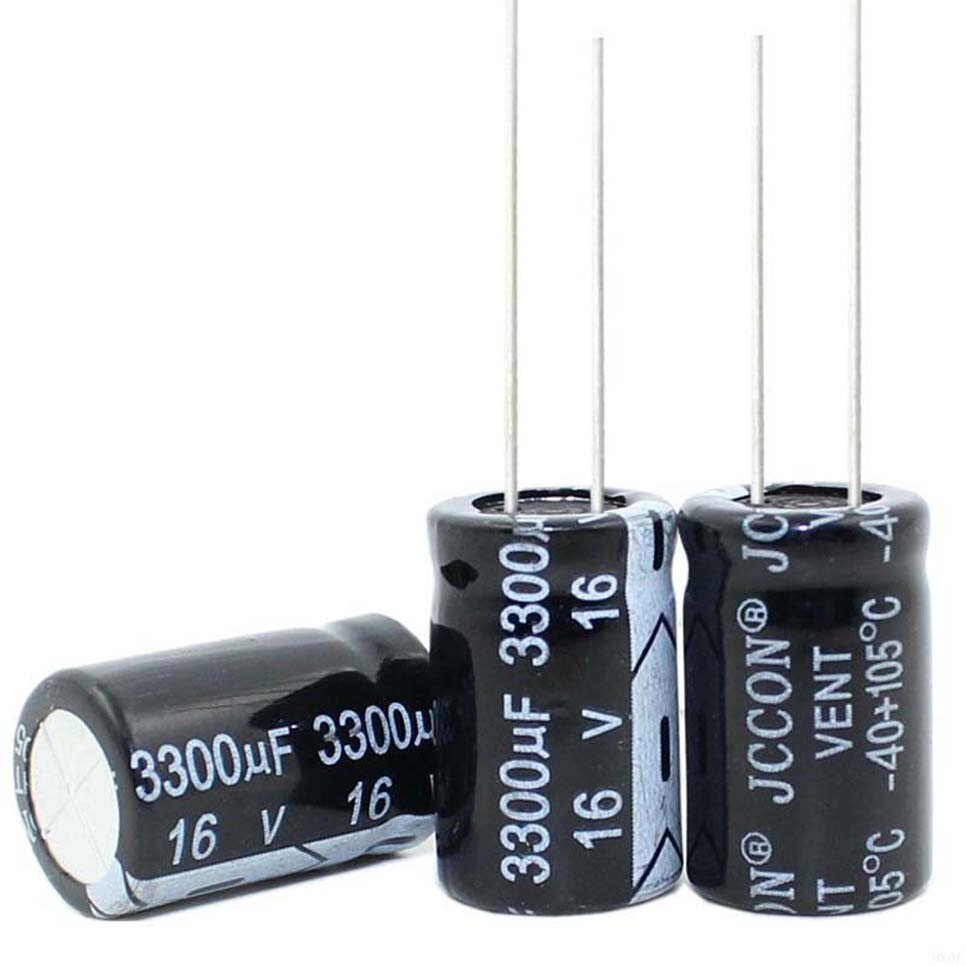

Electrolytic capacitor 3300µF/16V
The 3300µF 16V electrolytic capacitor stores energy and filters DC voltage in low-voltage applications. It works in power supplies, audio amplifiers, LED drivers, and general-purpose electronics. The aluminum electrolytic design ensures strong performance and long service life. It handles high ripple currents and smooths voltage fluctuations. You can mount it easily on a through-hole PCB. Clear polarity markings help prevent reverse installation. A safety vent protects against pressure buildup. The compact body fits tightly packed circuit boards. It operates from –40°C to +105°C. RoHS compliance ensures safe use in modern electronic systems.
| Parameter | Value |
|---|---|
| Capacitance | 3300 µF |
| Rated Voltage | 16 V DC |
| Capacitance Tolerance | ±20% |
| Polarity | Polarized |
| Operating Temperature | –40°C to +105°C |
| ESR (Typical) | 0.02 – 0.08 Ω (varies by series) |
| Ripple Current (120 Hz) | ~2.4 – 3.0 A RMS (typical) |
| Lead Spacing | 5 mm or 7.5 mm ‘ |
| Case Size (Example) | 12.5 mm (D) × 25 mm (H) or 16 × 31.5 mm |
| Mounting Type | Through-hole |
| Shelf Life | 2000 hours @ 105°C |
| Compliance | RoHS compliant |
