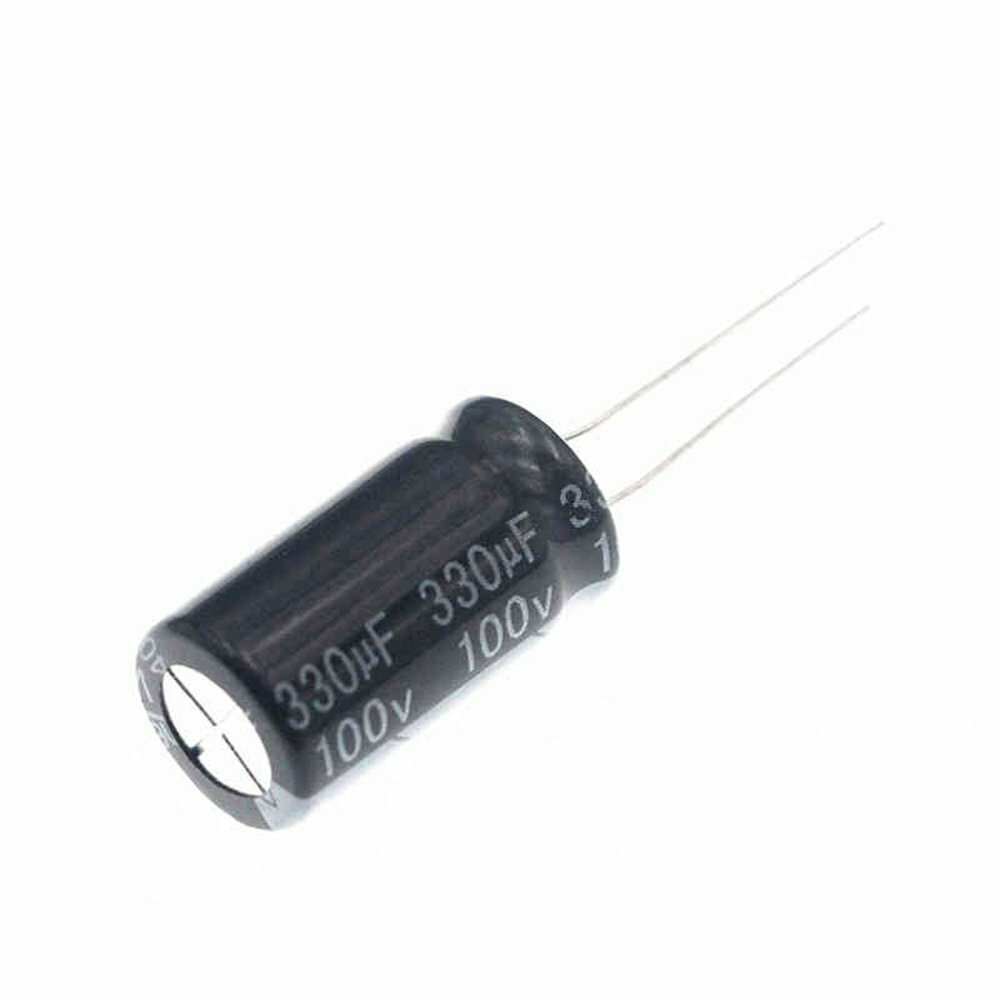

Electrolytic Capacitor 330µF/100V
The 330µF 100V electrolytic capacitor is built for high-voltage DC circuits. It smooths voltage, filters noise, and controls ripple in demanding applications. Ideal for power supplies, industrial controllers, and audio amplifiers. The 100V rating ensures safe use in systems with higher voltage requirements. Voltage stabilization helps extend the life of connected components. A cylindrical body fits most high-voltage PCB layouts. Through-hole design allows quick and secure mounting. Frequently used in automation, motor drives, and control systems. Offers stable performance, long life, and solid reliability. A preferred choice among professionals and advanced electronics builders.
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Rated Voltage (DC) | 100 V |
| Capacitance Tolerance | ±20% |
| Polarity | Polarized (Electrolytic) |
| Operating Temp. Range | -40°C to +85°C |
| Leakage Current | ≤ 100 µA after 2 minutes |
| ESR | Low to moderate |
| Dimensions (Approx.) | 12.5–16 mm (Dia.) × 25–30 mm (H) |
| Lead Spacing | 5–7.5 mm ‘ |
| Mounting Type | Through Hole |
| Applications | Power filtering, ripple control, decoupling |
| RoHS Compliant | Yes |
