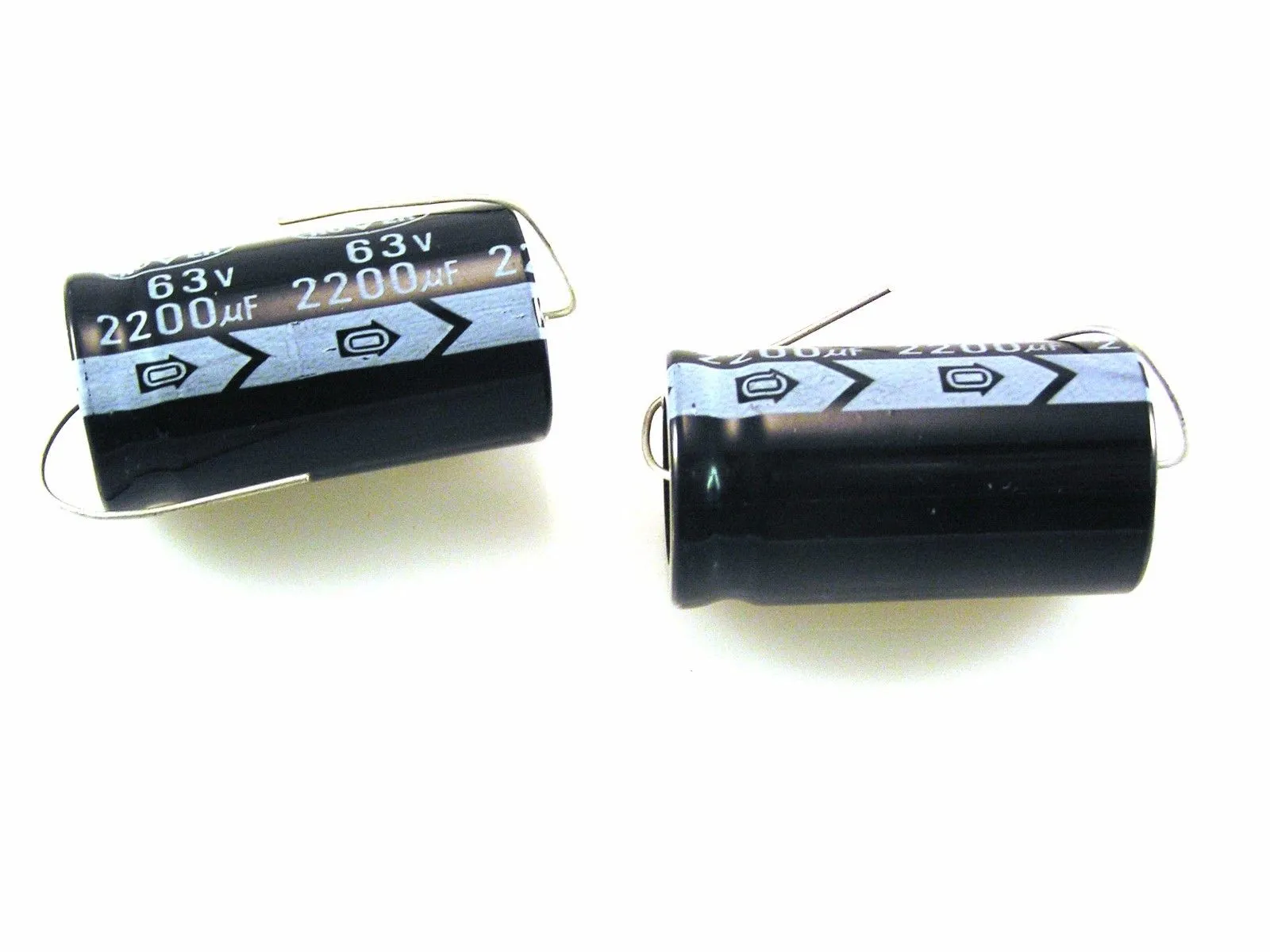

Electrolytic capacitor 2200µF/63V
The 2200µF 63V electrolytic capacitor handles energy storage and ripple filtering in medium-voltage circuits. It works well in audio systems, DC-DC converters, and power supplies. The aluminum electrolytic design delivers strong performance and long life. It smooths voltage and reduces noise in electronic systems. You can mount it easily on a through-hole PCB. Clear polarity markings guide safe installation. The compact cylindrical case fits into tight spaces. A pressure relief vent increases safety during faults. It operates from –40°C to +105°C. The capacitor resists voltage surges and supports high ripple current. RoHS compliance makes it safe for modern designs.
| Parameter | Value |
|---|---|
| Capacitance | 2200 µF |
| Rated Voltage | 63 V DC |
| Capacitance Tolerance | ±20% |
| Polarity | Polarized |
| Operating Temperature | –40°C to +105°C |
| ESR (Typical) | 0.02 – 0.08 Ω (depends on series) |
| Ripple Current (120 Hz) | ~2.5 – 3.2 A RMS (typical) |
| Lead Spacing | 10 mm ‘ |
| Case Size (Example) | 18 mm (D) × 35 mm (H) or 22 × 40 mm |
| Mounting Type | Through-hole |
| Shelf Life | 2000 hours @ 105°C |
| Compliance | RoHS compliant |
