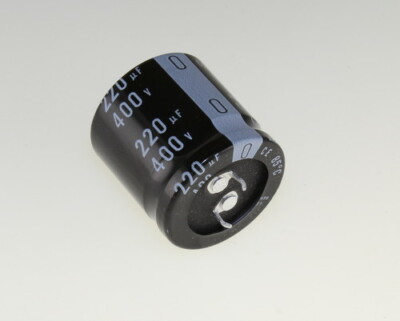

Electrolytic capacitor 220µF/400V
The 220µF 400V electrolytic capacitor handles high-voltage energy storage and filtering. It is widely used in power supplies, LED drivers, and motor control systems. The aluminum electrolytic design ensures high reliability and stability. It resists voltage surges and supports high ripple current. Clear polarity markings allow for safe installation. The cylindrical body fits easily into through-hole PCBs. It operates efficiently from −40°C to +105°C. A pressure-relief vent provides safety under overload conditions. It maintains capacitance over long use and tough environments. RoHS compliance makes it environmentally safe. Use it where space, performance, and voltage rating matter most
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Rated Voltage | 400 V DC |
| Capacitance Tolerance | ±20% |
| Polarity | Polarized |
| Operating Temperature | −40°C to +105°C |
| ESR (Typical) | 0.7 – 1.2 Ω (varies by model) |
| Ripple Current (120 Hz) | ~1.2 – 1.4 A RMS (typical) ‘ |
| Lead Spacing | 10 mm or 12.5 mm |
| Case Size (Example) | 22 mm (D) × 50 mm (H) |
| Mounting Type | Through-hole |
| Shelf Life | 2000 hours @ 105°C |
| Compliance | RoHS compliant |
