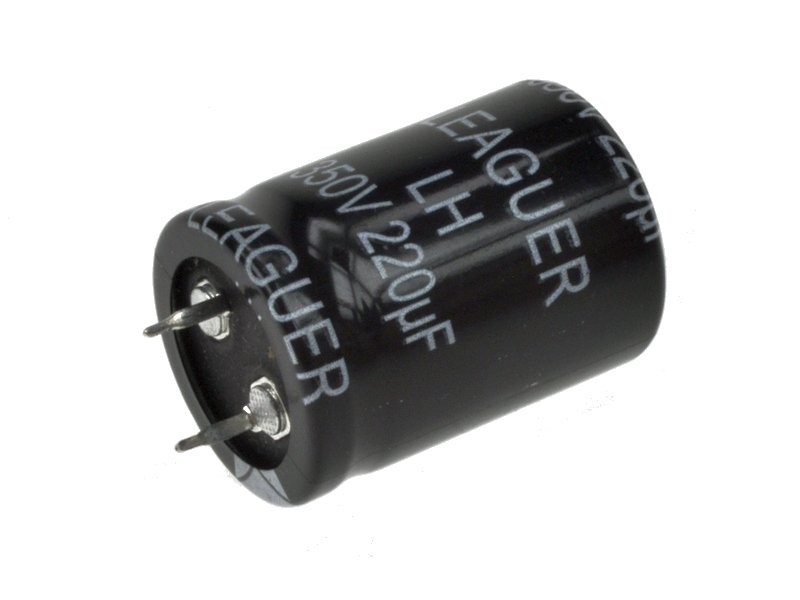

Electrolytic capacitor 220µF/350V
The 220 µF 350 V electrolytic capacitor targets high-voltage power designs. It stores energy and smooths DC rails in SMPS, inverters, and motor drives. Aluminum foil and electrolyte deliver stable performance and long life. Bold polarity stripes aid quick, safe placement. High ripple-current capability keeps output steady under heavy load. The compact cylindrical case mounts securely through holes and resists vibration. An internal pressure-relief vent boosts safety. The device maintains capacitance from −40 °C to +105 °C. Use it where high capacitance and voltage rating must fit tight PCB space. RoHS compliance supports green manufacturing.
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Rated Voltage | 350 V DC |
| Capacitance Tolerance | ±20 % |
| Polarity | Polarized |
| Operating Temperature | −40 °C to +105 °C |
| ESR (Typical) | 0.6 – 1.0 Ω (varies by series) |
| Ripple Current (120 Hz) | ~1.1 – 1.3 A RMS (typical) ‘ |
| Lead Spacing | 10 mm or 12.5 mm (depends on package) |
| Case Size (example) | 22 mm (D) × 45 mm (H) |
| Mounting Type | Through-hole |
| Shelf Life | 2000 h @ 105 °C |
| Compliance | RoHS |
