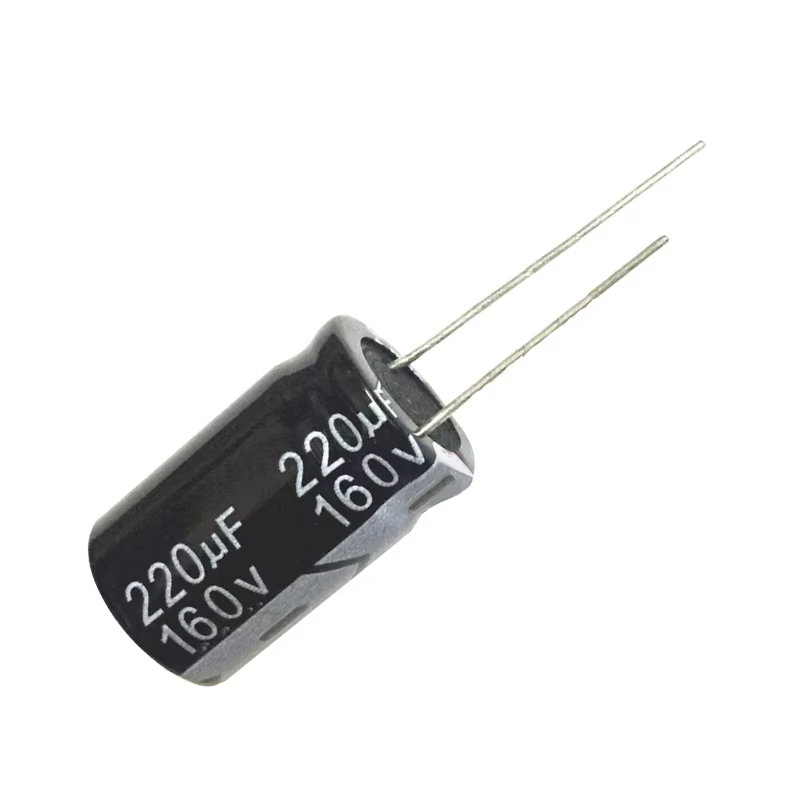

Electrolytic capacitor 220µF/160V
The 220µF 160V electrolytic capacitor handles high-voltage filtering and energy storage. It suits power supplies, inverters, and industrial systems. This capacitor stores and smooths energy with stability. It has aluminum electrolytic design that ensures durability. Its Polarity is clearly marked for safe installation. it can be used when high ripple current and voltage handling are needed. It fits through-hole PCB layouts with a standard form factor. The component works reliably in a wide temperature range. A built-in safety vent protects under fault conditions. RoHS compliance ensures environmental safety. It has high capacitance and voltage rating which make it ideal for demanding electronic circuits.
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Rated Voltage | 160 V DC |
| Capacitance Tolerance | ±20% |
| Polarity | Polarized |
| Operating Temperature | -40°C to +105°C |
| ESR (Typical) | 0.3 – 0.6 Ω (varies by model) ‘ |
| Ripple Current (120Hz) | ~700–850 mA (RMS, typical) |
| Lead Spacing | 5 mm or 7.5 mm (depends on size) |
| Case Size (Example) | 16mm (D) x 25mm (H) |
| Mounting Type | Through-hole |
| Shelf Life | 2000 hours @ 105°C |
| Compliance | RoHS compliant |
