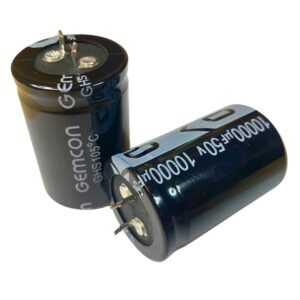

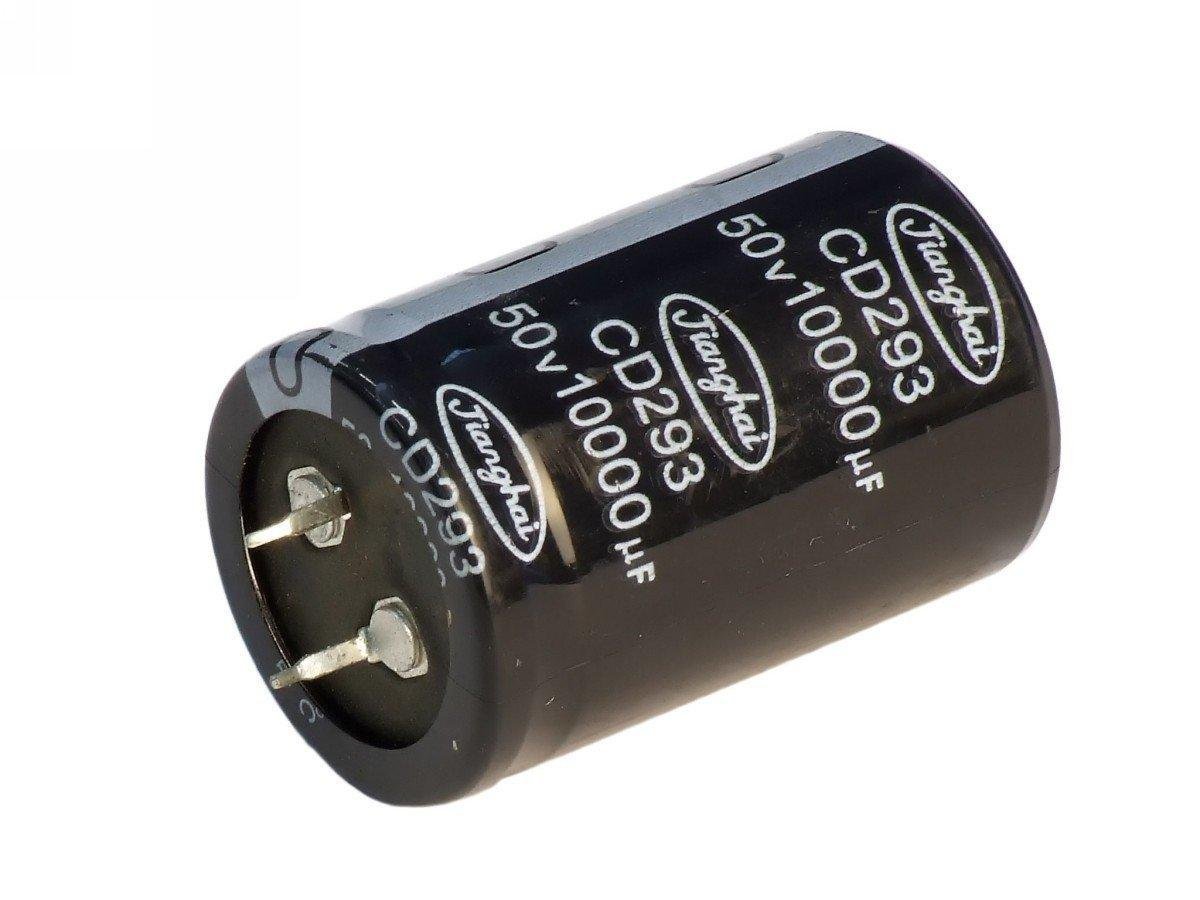

Electrolytic capacitor 10000µF/50V
The 10000µF 50V electrolytic capacitor stores energy and filters voltage in medium-power circuits. It works well in power amplifiers, motor controllers, and industrial DC supplies. The aluminum construction delivers high capacitance and handles strong ripple current. It stabilizes voltage and reduces ripple under heavy loads. You can mount it easily on a through-hole PCB. Polarity markings help ensure correct installation. A pressure relief vent enhances safety under fault conditions. The cylindrical case fits large PCB footprints. It operates reliably from –40°C to +105°C. RoHS compliance supports modern and eco-friendly product designs.
Parameter | Value |
---|---|
Capacitance | 10000 µF |
Rated Voltage | 50 V DC |
Capacitance Tolerance | ±20% |
Polarity | Polarized |
Operating Temperature | –40°C to +105°C |
ESR (Typical) | 0.008 – 0.030 Ω (depends on series) |
Ripple Current (120 Hz) | ~5.5 – 7.5 A RMS (typical) |
Lead Spacing | 10 mm or 12.5 mm ‘ |
Case Size (Example) | 25 mm (D) × 50 mm (H) or 30 × 50 mm |
Mounting Type | Through-hole |
Shelf Life | 2000 hours @ 105°C |
Compliance | RoHS compliant |
