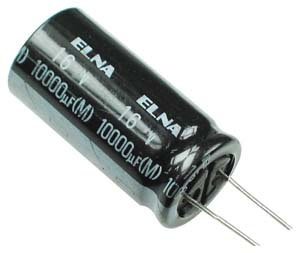

Electrolytic capacitor 10000µF/16V
The 10000µF 16V electrolytic capacitor filters voltage and stores energy in low-voltage circuits. It works in power amplifiers, DC power supplies, and battery chargers. The aluminum electrolytic design delivers high capacitance and stable operation. It smooths ripple and stabilizes voltage under load. You can install it easily on a through-hole PCB. Clear polarity markings guide correct placement. A safety vent protects the capacitor in overload conditions. The compact cylindrical body fits common board layouts. It operates from –40°C to +105°C. RoHS compliance supports use in modern and eco-friendly electronics.
Parameter | Value |
---|---|
Capacitance | 10000 µF |
Rated Voltage | 16 V DC |
Capacitance Tolerance | ±20% |
Polarity | Polarized |
Operating Temperature | –40°C to +105°C |
ESR (Typical) | 0.015 – 0.04 Ω (depends on model) |
Ripple Current (120 Hz) | ~3.5 – 4.5 A RMS (typical) |
Lead Spacing | 7.5 mm or 10 mm |
Case Size (Example) | 18 mm (D) × 35 mm (H) or 22 × 40 mm |
Mounting Type | Through-hole ‘ |
Shelf Life | 2000 hours @ 105°C |
Compliance | RoHS compliant |
