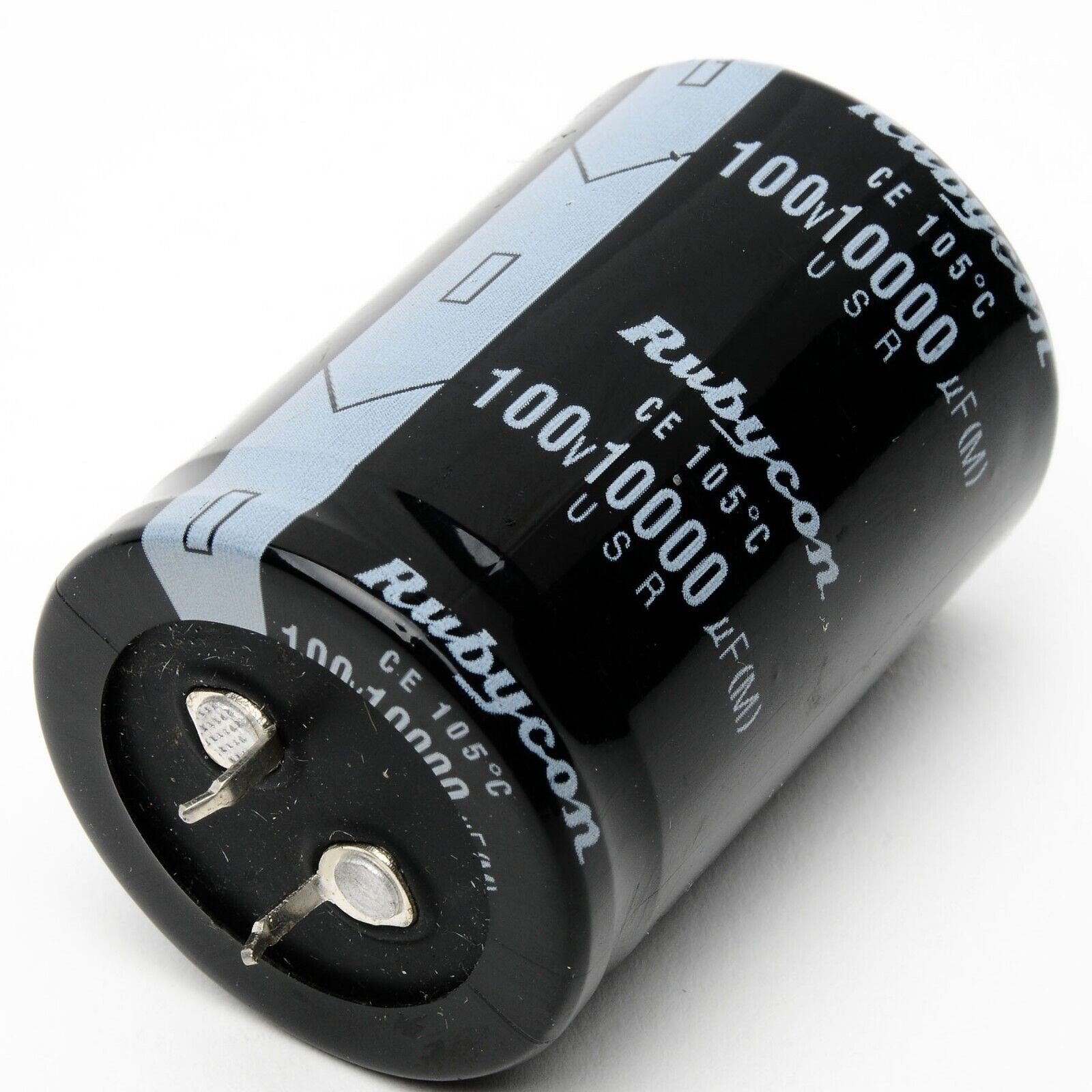

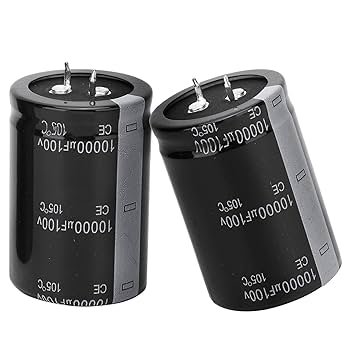

Electrolytic capacitor 10000µF/100V
The 10000µF 100V electrolytic capacitor handles energy storage and filtering in high-voltage circuits. It performs well in industrial inverters, motor drives, and high-power amplifiers. The aluminum design offers long service life and stable electrical performance. It smooths voltage, reduces ripple, and withstands surge conditions. You can mount it easily on a through-hole PCB. Polarity markings ensure proper installation. A pressure relief vent adds safety during fault conditions. The large cylindrical body fits high-current board layouts. It operates from –40°C to +105°C. RoHS compliance makes it suitable for modern, eco-friendly designs.
| Parameter | Value |
|---|---|
| Capacitance | 10000 µF |
| Rated Voltage | 100 V DC |
| Capacitance Tolerance | ±20% |
| Polarity | Polarized |
| Operating Temperature | –40°C to +105°C |
| ESR (Typical) | 0.008 – 0.020 Ω (varies by series) |
| Ripple Current (120 Hz) | ~6.5 – 9.0 A RMS (typical) |
| Lead Spacing | 12.5 mm or 15 mm |
| Case Size (Example) | 35 mm (D) × 60 mm (H) or 40 × 80 mm |
| Mounting Type | Through-hole ‘ |
| Shelf Life | 2000 hours @ 105°C |
| Compliance | RoHS compliant |
