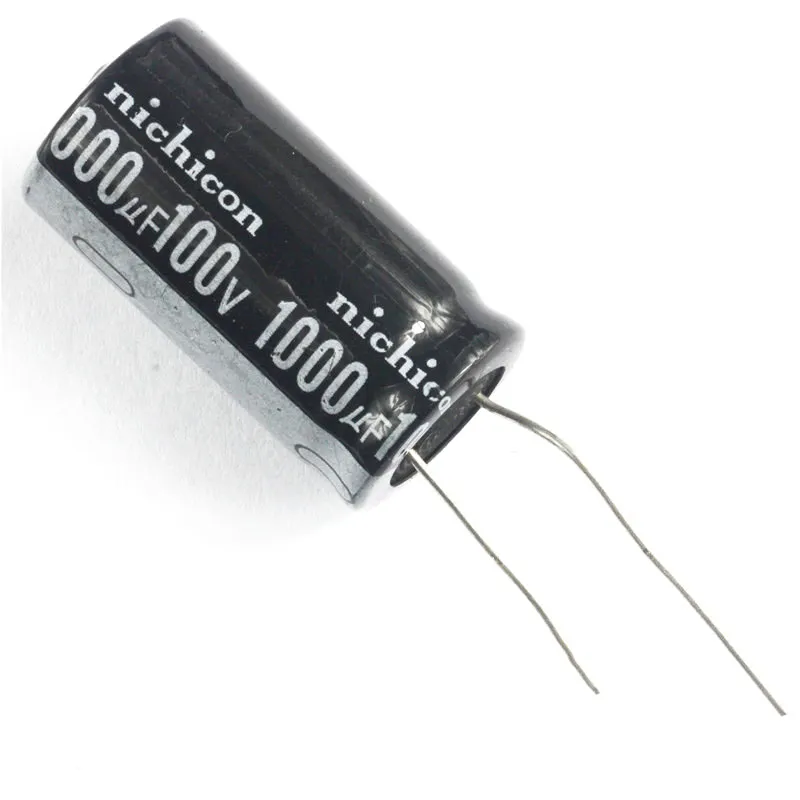

Electrolytic Capacitor 1000µF/100V
The 1000µF 100V electrolytic capacitor is ideal for high-voltage DC circuits. It provides reliable ripple suppression, voltage smoothing, and energy storage. Commonly used in power amplifiers, motor controllers, and industrial systems. The 100V rating allows safe use in circuits with elevated voltage levels. High capacitance ensures stable power flow and minimizes voltage dips. Cylindrical in shape, it fits larger PCB layouts. Through-hole leads offer strong mechanical stability. The polarized design requires correct orientation in circuits. Suitable for both repair work and new designs in high-performance electronic applications.
| Parameter | Value |
|---|---|
| Capacitance | 1000 µF |
| Rated Voltage (DC) | 100 V |
| Capacitance Tolerance | ±20% |
| Polarity | Polarized (Electrolytic) |
| Operating Temp. Range | -40°C to +85°C |
| Leakage Current | ≤ 300 µA after 2 minutes |
| ESR | Low to moderate |
| Dimensions (Approx.) | 18–22 mm (Dia.) × 35–40 mm (H) |
| Lead Spacing | 7.5–10 mm ‘ |
| Mounting Type | Through Hole |
| Applications | Power filtering, motor drivers, amplifiers |
| RoHS Compliant | Yes |
