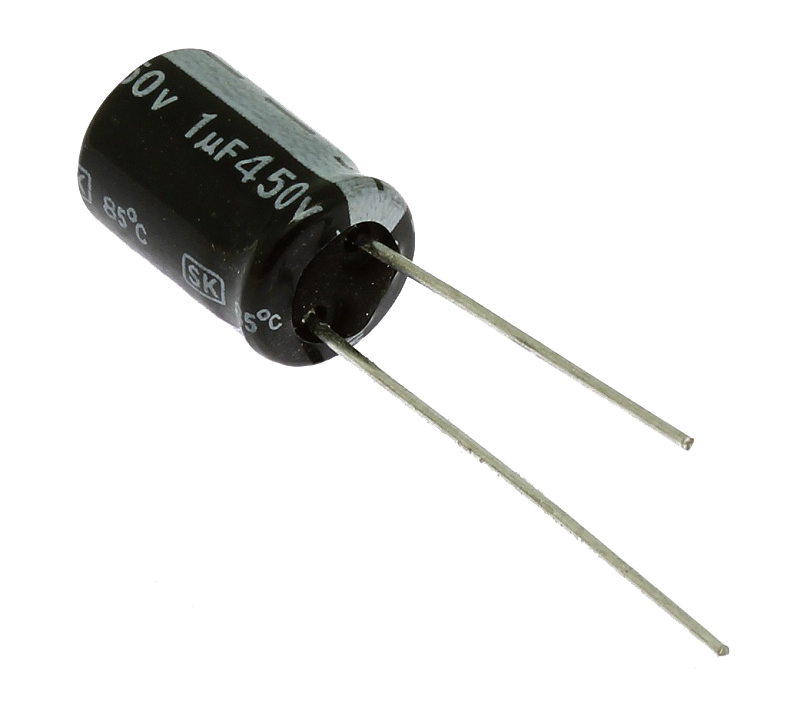

Electrolytic Capacitor 1µF/450V
The Electrolytic Capacitor 1µF 450V is a high-voltage capacitor. is polarized for DC circuits. Use it to filter voltage and block noise. smooths power supply signals. It also couples and decouples signals. works well in audio and power systems. This capacitor handles up to 450 volts. is safe and stable in performance. protects sensitive circuit parts. It helps keep voltage clean and steady. The small size saves space on boards. is easy to mount on PCBs or breadboards. Use it in amplifiers and high-voltage power supplies. Great for repairs and new projects. Trusted by hobbyists and professionals. It delivers reliable results for demanding designs.
| Parameter | Value |
|---|---|
| Capacitance | 1 µF |
| Rated Voltage (DC) | 450 V |
| Capacitance Tolerance | ±20% (typical) |
| Polarity | Polarized (Electrolytic) |
| Operating Temperature Range | -40°C to +85°C |
| Leakage Current | ≤ 9 µA after 2 minutes |
| ESR (Equivalent Series Resistance) | Low to moderate |
| Dimensions (Approx.) | 6 mm (Dia.) × 16–20 mm (H) ‘ |
| Lead Spacing | 2 mm to 2.5 mm |
| Applications | Filtering, smoothing, coupling, decoupling |
| Mounting Type | Through Hole |
| RoHS Compliant | Yes |
