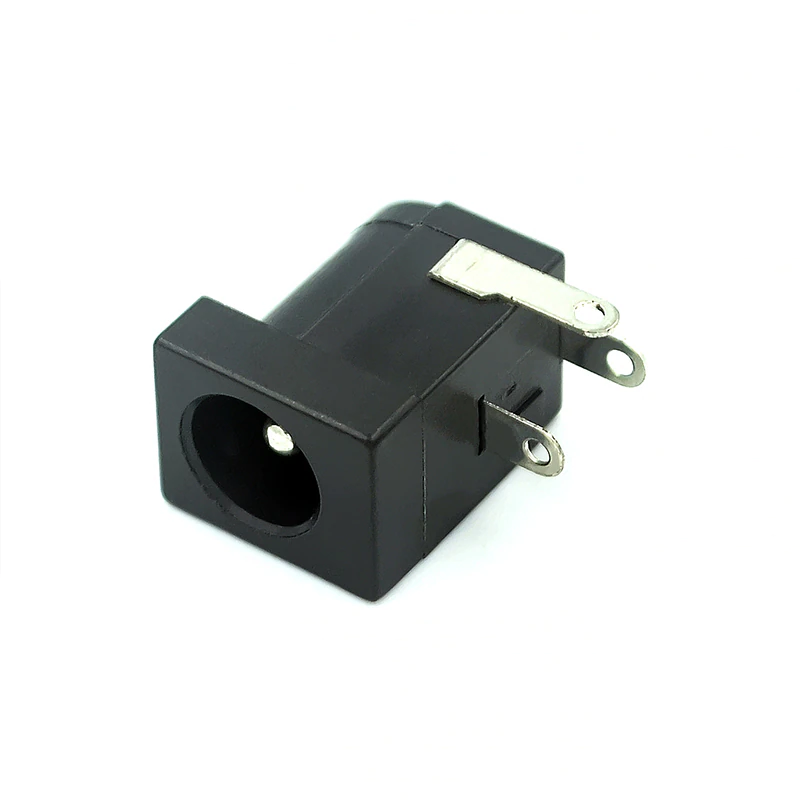

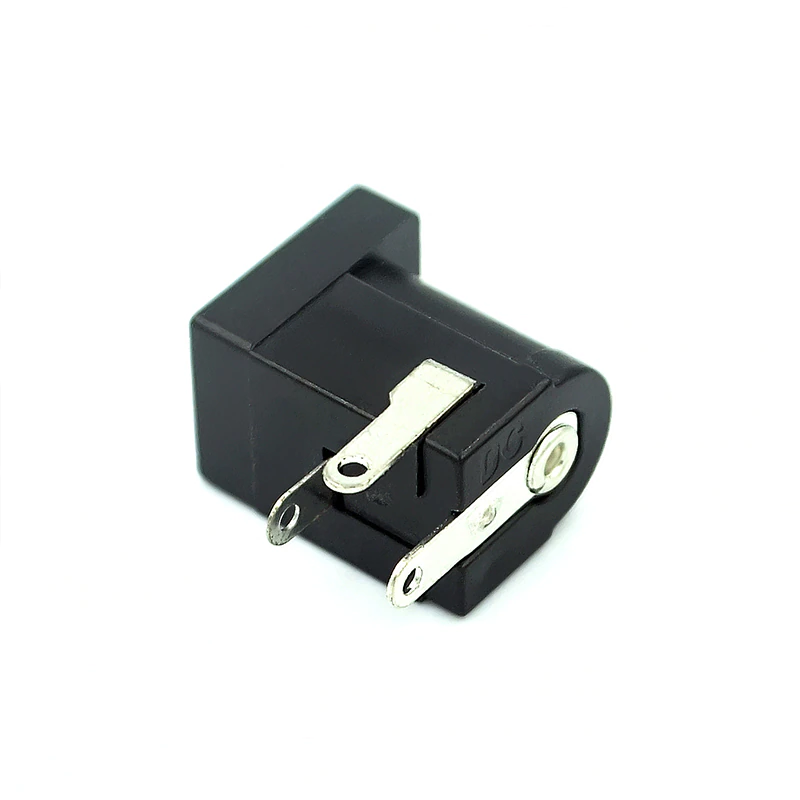

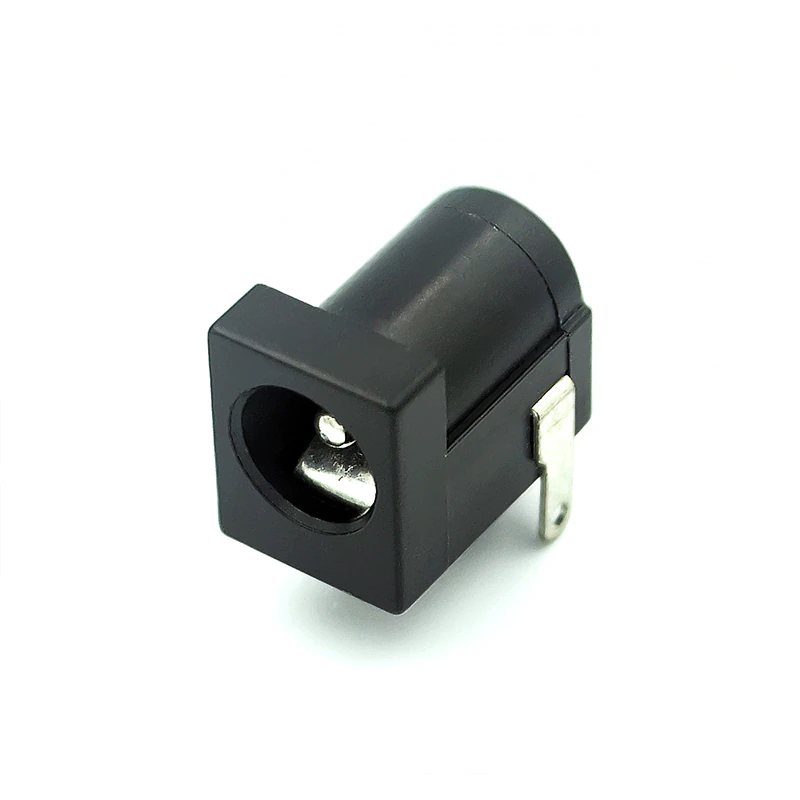

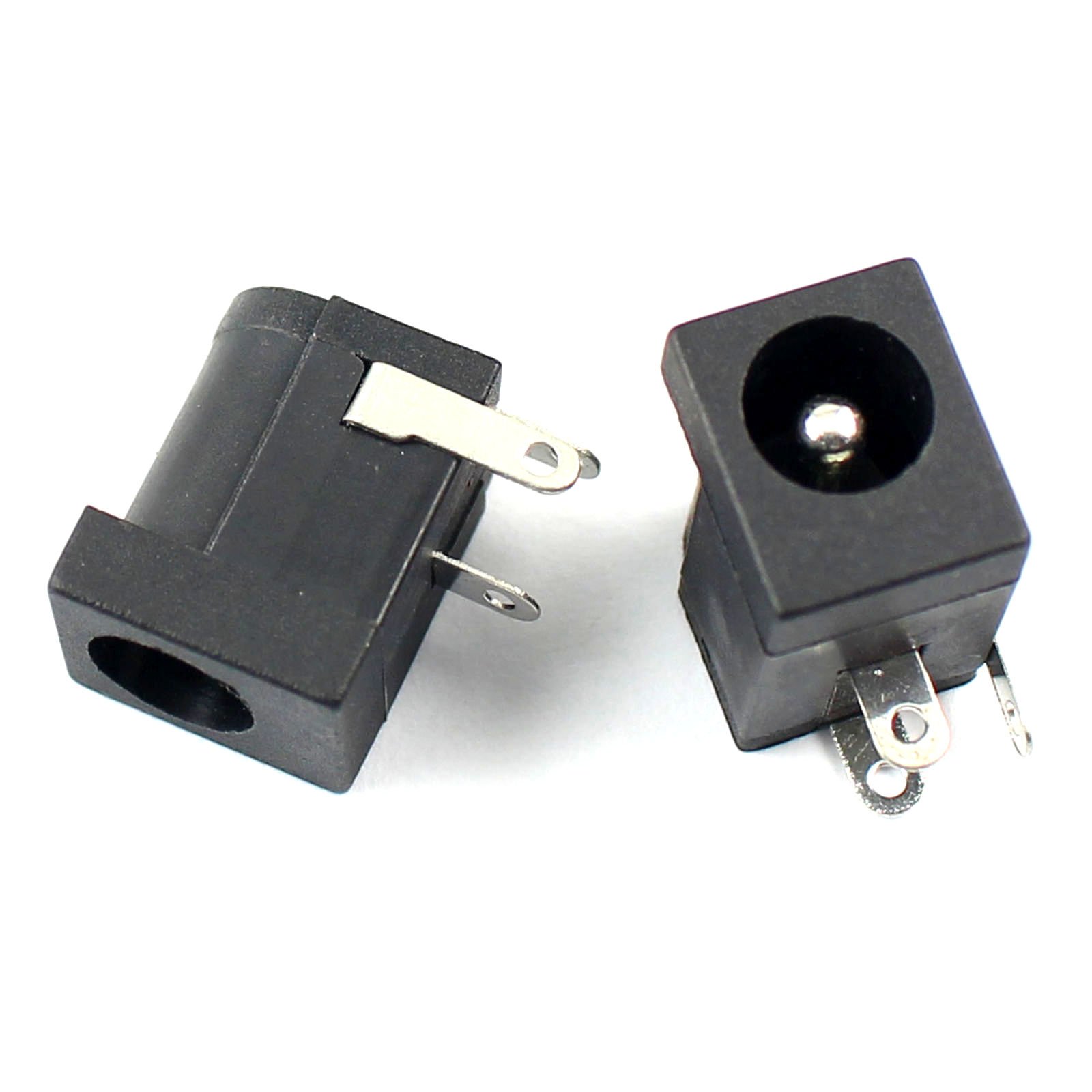

DC Power Jack Female Socket Connector
The DC Power Jack Female Socket Connector 5.5mmx2.1mm is a high-quality, standard component designed for seamless integration into electronic devices requiring DC power input. Featuring a 5.5mm outer diameter and a 2.1mm inner diameter, this connector is compatible with a wide array of DC power adapters and plugs, making it a versatile choice for both professional and hobbyist applications. Its through-hole mounting design ensures secure attachment to printed circuit boards (PCBs), facilitating reliable power delivery in various electronic setups.
Features:
- Standard 5.5×2.1mm dimensions for broad compatibility with DC power plugs.
- Through-hole mounting for secure PCB integration.
- Rated for DC 30V and 1.0A, suitable for low to medium power applications.
- Operating temperature range: -30°C to +70°C.
Specifications:
- Rated load voltage: 30VDC
- Rated load Current: 1A
- Plug Type: 5.5mm x 2.1 mm
- No. of Pin: 3
- Operating Temperature: -30 ~ +70℃
- Contact resistance: ≤0.03
- Insulation Resistance: ≥100MΩ
- Center Pole Diameter: 2.1mm
- Compatible with: 5.5 mm jack
- Withstand voltage: AC 500V (50Hz)/min.
- Actuating force: 3N – 20N
