DA15 Wire Solder Female D-Type Connector

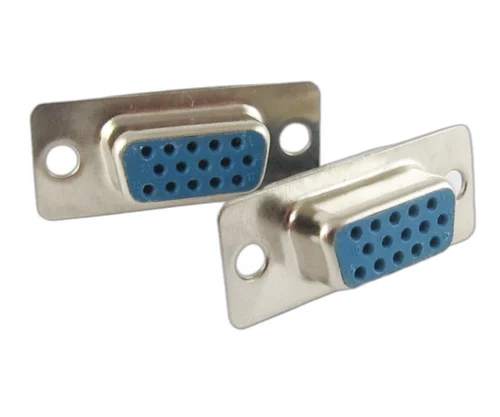

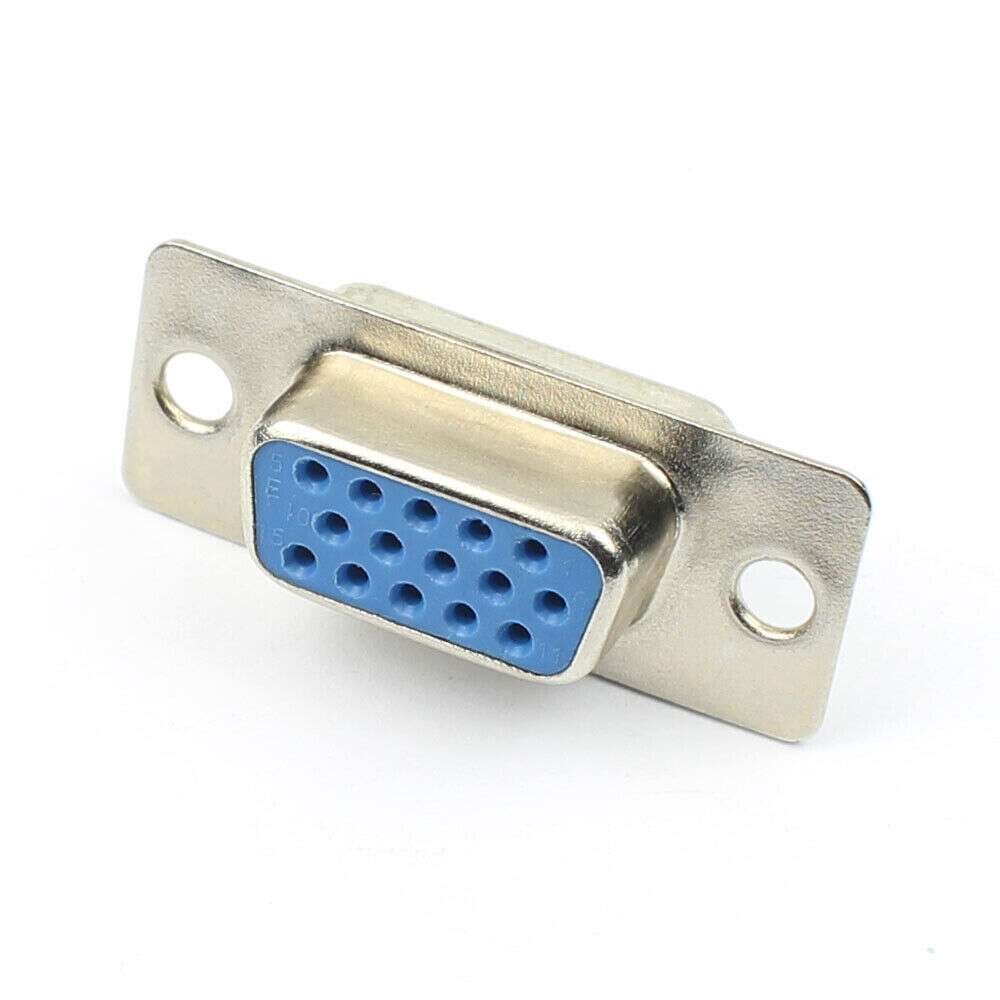

The DA15 Wire Solder Female D-Type Connector is a robust 15-contact (hole) connector used for transmitting analog or digital signals in control systems, industrial equipment, audio interfaces, and older computer connections. Following the D-subminiature standard, it features a 3-row configuration (5+5+5) to accommodate multiple signal lines within a compact footprint. The solder-cup terminals allow for easy manual wire soldering, making it ideal for custom multi-core cable assemblies, prototype work, and repairs. This female connector mates securely with standard DA15 male plugs and can be mounted with metal or plastic backshells to enhance shielding and provide strain relief. Commonly used in legacy game controllers, MIDI devices, industrial machinery, and instrumentation, the DA15 female connector ensures stable, interference-resistant multi-channel connectivity.
Key Features
15-Contact D-Type Female Connector: Standard DA15 layout, 3 rows (5+5+5).
Solder-Cup Terminals: Simple hand soldering for custom cable builds.
Reliable Multi-Pin Connection: Stable and low-resistance signal paths.
Compatible Fit: Pairs with standard DA15 male connectors.
Optional Shell: Supports backshells for EMI/RFI shielding and cable strain relief.
Versatile Applications: Joysticks, MIDI, industrial signals, older PCs.
Specifications
Type: DA15 (D-sub 15-hole) Female Connector.
Contact Layout: 15 holes in 3 rows (5 per row).
Termination: Solder-cup wire attachment.
Contact Material: Brass with gold or tin plating.
Shell Material: Nickel-plated steel or plastic hoods available.
Mounting Style: Panel mount or cable mount with hardware.
Current Rating: Typically up to 5 A max.
Voltage Rating: Up to 300 V RMS.
Operating Temperature: -55°C to +105°C.
Compliance: RoHS compliant.
Applications
Joystick/game controller interfaces.
MIDI and audio equipment connections.
Industrial control signal wiring.
Legacy PC connections and test setups.
Custom or prototype multi-core cables.
DIY repairs and hobby electronics.
| Parameter | Specification |
|---|---|
| Connector Type | DA15 (DB15) Female D‑Sub |
| Number of Pins | 15 pins (3 rows: 5 pins per row) — High Density layout |
| Gender | Female (socket contacts) |
| Contact Type | Solder cup terminals for wire soldering |
| Current Rating | Up to 5 A per contact |
| Voltage Rating | 300 V AC RMS |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 1000 MΩ at 500 V DC |
| Dielectric Withstand | 750 V AC RMS for 1 minute |
| Contact Material | Brass or phosphor bronze, gold or tin-plated |
| Shell Material | Steel or zinc alloy, nickel-plated for EMI/RFI shielding – |
| Insulator Material | PBT or glass-filled thermoplastic, flame-retardant (UL94V‑0) |
| Mounting Style | Panel mount with screw flanges; can also be PCB mounted |
| Operating Temperature | –55 °C to +125 °C |
| Common Applications | VGA connectors (HD15), KVM switches, older video cards, industrial signal/control |
