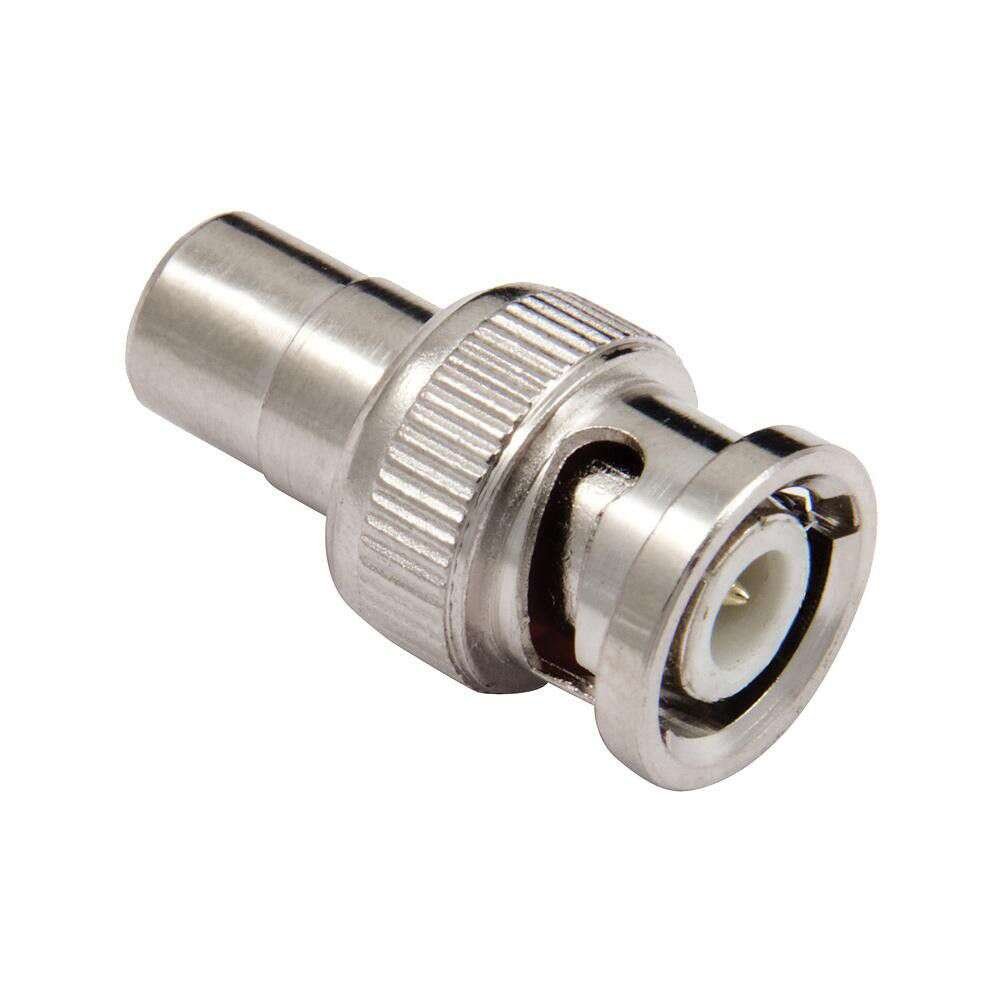

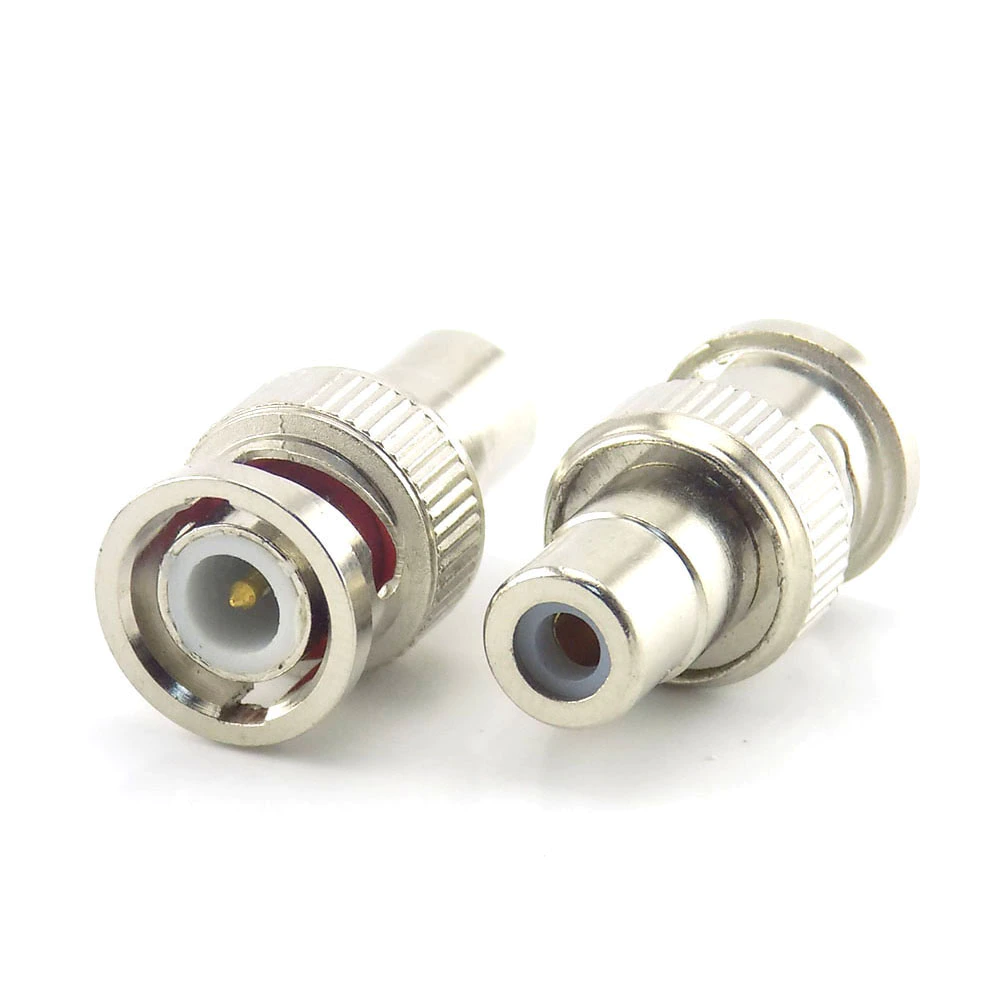

BNC Plug to RCA Female Jack Connector
The BNC Plug to RCA Female Jack Connector is a handy adapter that converts a BNC male connection to an RCA female interface. It allows users to connect professional video equipment with BNC outputs (like CCTV cameras or security DVRs) to consumer devices that use RCA inputs (such as monitors, TVs, or video capture cards). This adapter ensures a secure signal transmission with minimal loss, offering a quick and cost-effective solution for mixed-system setups. Compact and durable, it’s perfect for field work, test setups, CCTV installations, and video signal conversion tasks.
Key Features
Interface Conversion: Connects BNC male plug to RCA female jack.
Universal Compatibility: Works with CCTV cameras, DVRs, video monitors, and capture devices.
Signal Integrity: Provides stable video signal with low interference.
Durable Construction: Nickel-plated connectors for corrosion resistance and long life.
Easy to Use: Plug-and-play design, no tools or soldering needed.
Compact & Lightweight: Portable and ideal for on-site installations.
Specifications
Connector Type: BNC Plug (Male) to RCA Jack (Female).
Body Material: Brass with nickel-plated finish.
Impedance: 50 Ohm or 75 Ohm (typical for video).
Frequency Range: Up to 1 GHz (varies by quality).
Operating Voltage: Suitable for standard video signal levels.
Operating Temperature: -20°C to +65°C.
Dimensions: Approx. 35mm length × 10mm diameter (may vary slightly).
Color: Silver. ‘
Applications
CCTV security camera installations.
Converting BNC video output to RCA input on monitors or TVs.
Connecting test equipment and signal analyzers.
Video capture for PC or recording devices with RCA input.
Field service and quick repair tasks for mixed connector systems.
AV signal distribution setups.
