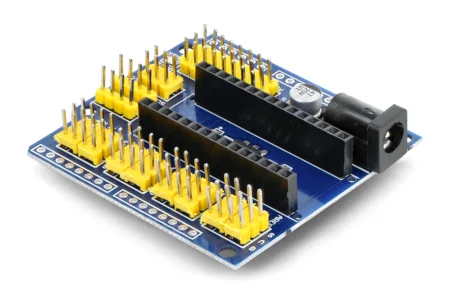

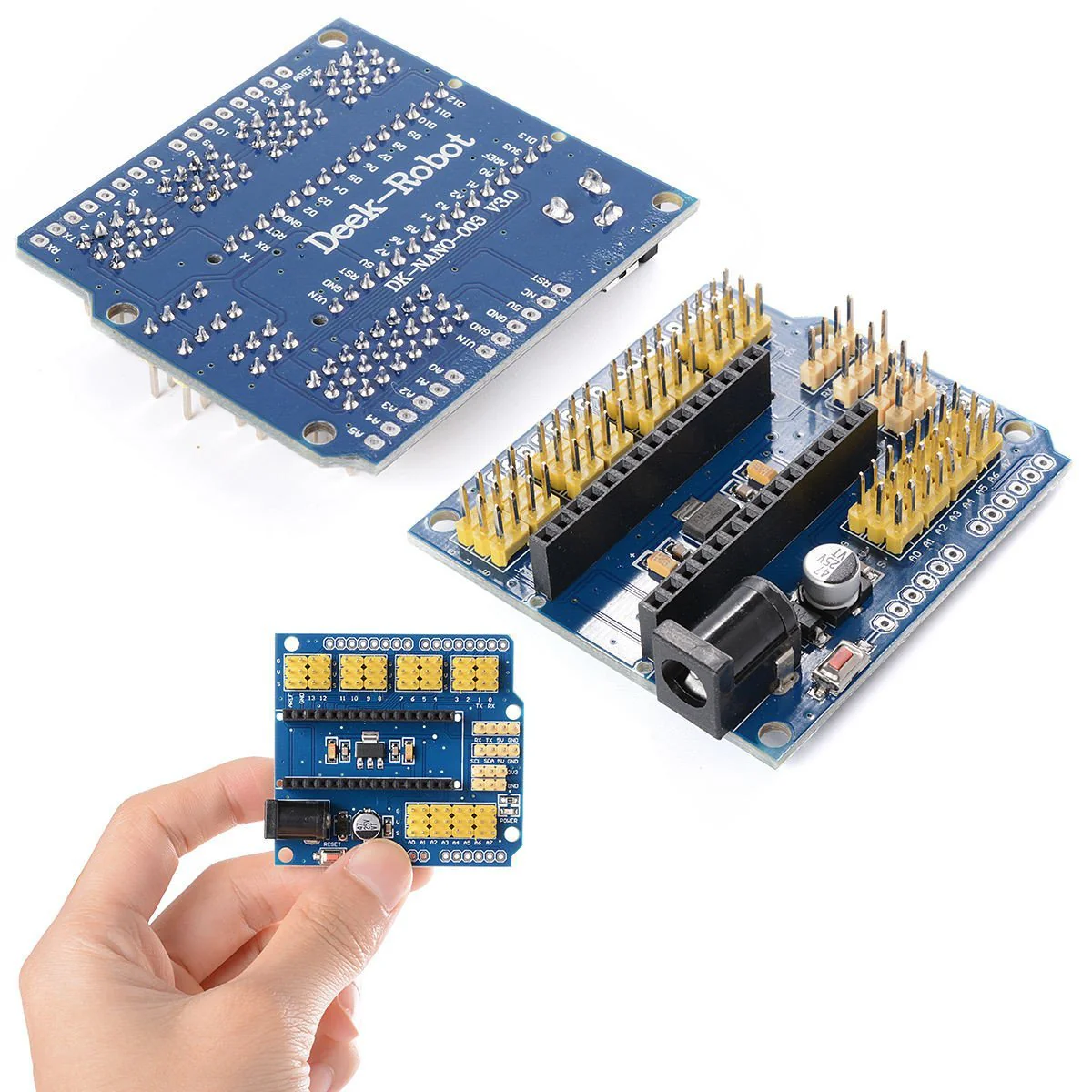

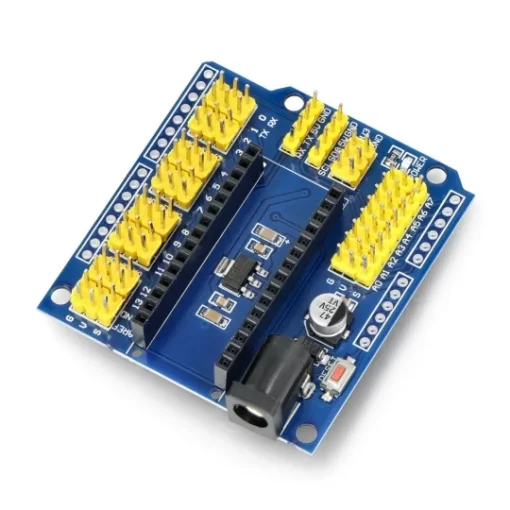

Arduino Nano Shield Expansion Board
The Arduino Nano Shield Expansion Board is a highly practical accessory designed specifically to extend the capabilities of the Arduino Nano. While the Nano itself is compact and efficient, connecting multiple sensors, actuators, and external modules can sometimes be difficult due to the limited pin spacing and the need for breadboards. This expansion board solves that issue by breaking out all the pins into screw terminals and headers, making prototyping, testing, and final project assembly much easier and more reliable. It provides stable power connections, extra accessibility, and a secure mounting option, all of which make it perfect for both beginners in electronics and advanced makers developing complex projects.
How It Works
The expansion board connects directly to the bottom of the Arduino Nano, aligning perfectly with its pins. Once attached, every digital and analog pin is accessible via both standard headers and screw terminals, meaning you can choose whichever connection method best suits your project. The board also includes power input pins (VIN, 5V, 3.3V, and GND) for stable power distribution to external components. A convenient onboard reset button allows quick restarts without removing the Nano from the shield. Because it eliminates the need for jumper wires in many cases, the shield helps reduce wiring errors and improves overall circuit stability.
Key Features
Compatible with all Arduino Nano models
Breaks out every Nano pin into both screw terminals and headers
Easy connection to sensors, modules, and external devices
Built-in power pins: VIN, 5V, 3.3V, and GND
Onboard reset button for convenience
Compact form factor with Nano-sized footprint
Reliable and secure screw terminal connections
Great for both prototyping and final projects
Specifications
| Parameter | Value |
|---|---|
| Compatibility | Arduino Nano (all versions) |
| Power Input | 7–12 V DC via VIN |
| Regulated Outputs | 5 V, 3.3 V, GND |
| Pin Accessibility | Headers + Screw terminals |
| Reset Button | Onboard hardware reset |
| Board Size | Matches Nano form factor |
Pin Configuration
| Shield Pin | Function |
|---|---|
| VIN | External power input (7–12 V DC) – |
| 5V | Regulated 5V output |
| 3.3V | Regulated 3.3V output |
| GND | Ground reference |
| D0–D13 | Digital pins (PWM supported on some) |
| A0–A7 | Analog input pins |
| RESET | Manual reset button |
Applications
This expansion board is extremely versatile. It can be used in robotics projects where multiple motors and sensors must be wired safely. It is also ideal for IoT applications, automation systems, and DIY electronics where multiple components need stable connections. For educational use, it provides a beginner-friendly way to experiment with the Arduino Nano without messy wiring, making learning smoother and more enjoyable.
