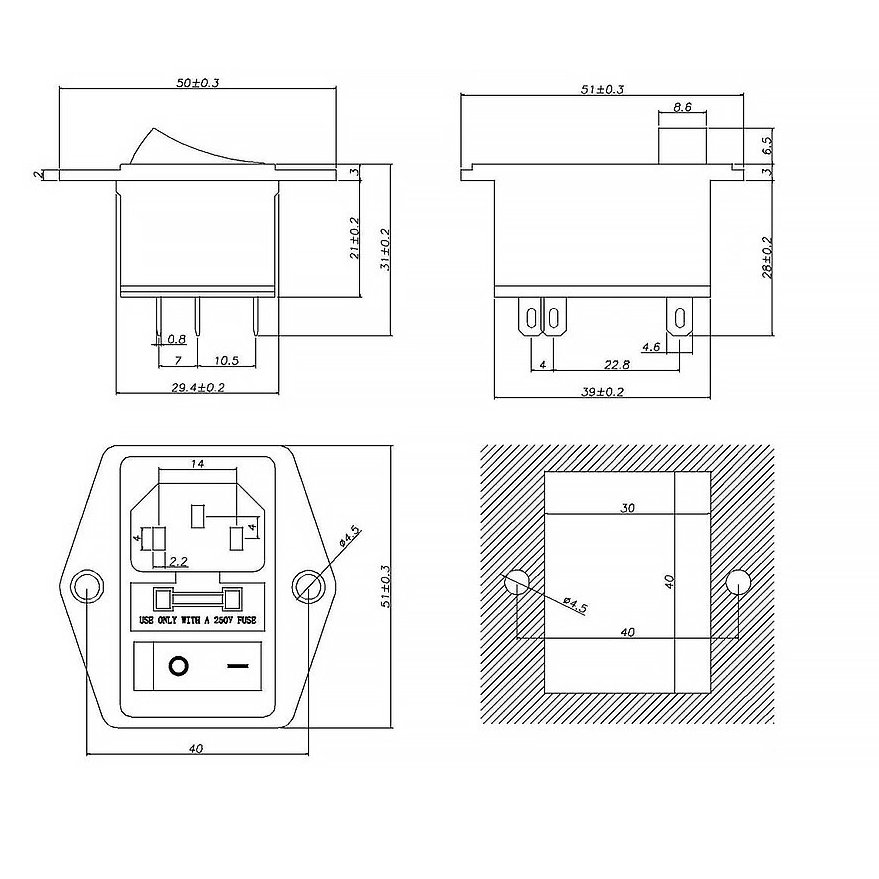

Panel Mount AC Power Male Socket With Fuse Compartment And ON/OFF Switch
The Panel Mount AC Power Male Socket with Fuse Compartment and ON/OFF Switch is a versatile and practical component designed to safely connect and control AC mains power in various electrical and electronic devices. This integrated unit combines a standard IEC C14 male inlet, a built-in fuse holder for circuit protection, and a rocker ON/OFF switch for convenient power control. It is commonly used in power supply units, industrial control panels, test equipment, amplifiers, and home appliances where a compact and secure power entry module is required.
The fuse compartment allows quick replacement of blown fuses without dismantling the unit, providing an extra layer of safety for connected circuits. Its panel mount design ensures easy installation and firm attachment to enclosures or chassis, while the switch offers a clear, reliable means of powering devices on or off.
Key Features
3-in-1 Design: Combines AC power inlet, fuse holder, and ON/OFF rocker switch.
IEC C14 Male Inlet: Standard connector for AC mains power.
Integrated Fuse Compartment: Easy access for quick fuse replacement.
Built-in Rocker Switch: Safe and convenient power control.
Panel Mount: Secure installation on device housings or enclosures.
Flame-Retardant Housing: High safety for AC applications.
Specifications
Connector Type: IEC C14 Male Socket.
Rated Voltage: 250V AC.
Rated Current: 10A max (typical).
Fuse Holder: Accepts standard glass or ceramic fuses (typically 5×20 mm).
Switch Type: Single pole single throw (SPST) rocker switch.
Switch Rating: 10A 250V AC (varies by model).
Housing Material: Flame-retardant plastic (e.g., PA66).
Mounting Style: Panel mount with screws or snap-fit clips.
Operating Temperature: -25°C to +85°C.
Compliance: RoHS compliant.
Applications
Power supply units for electronics and appliances.
Industrial control panels.
Audio amplifiers and stage equipment.
Laboratory and test instruments.
DIY electronic projects needing safe AC power entry.
Replacement parts for power modules with integrated switch and fuse.
Panel Mount AC Power Male Socket with Fuse & Switch
| Parameter | Specification |
|---|---|
| Connector Type | IEC 320 C14 Inlet Male Socket |
| Switch Type | Single Pole Single Throw (SPST) Rocker Switch |
| Fuse Holder | Integrated; typically accepts 5×20 mm or 6×30 mm glass fuses |
| Rated Voltage | 250 V AC |
| Rated Current | 6 A, 10 A or 15 A (varies by model) |
| Contact Resistance | ≤ 50 mΩ |
| Insulation Resistance | ≥ 100 MΩ at 500 V DC |
| Dielectric Strength | 2000 V AC RMS for 1 minute |
| Mounting Style | Snap‑in or screw mount on panel cutout |
| Terminals | 3 spade terminals (Line, Neutral, Earth) |
| Fuse Type | Replaceable, accessible from front |
| Switch Position | I / O (ON / OFF) marked |
| Housing Material | Flame‑retardant PA66 or ABS (UL94V‑0) ‘ |
| Operating Temperature | –25 °C to +85 °C |
| Standards | Often UL, VDE, RoHS compliant |
