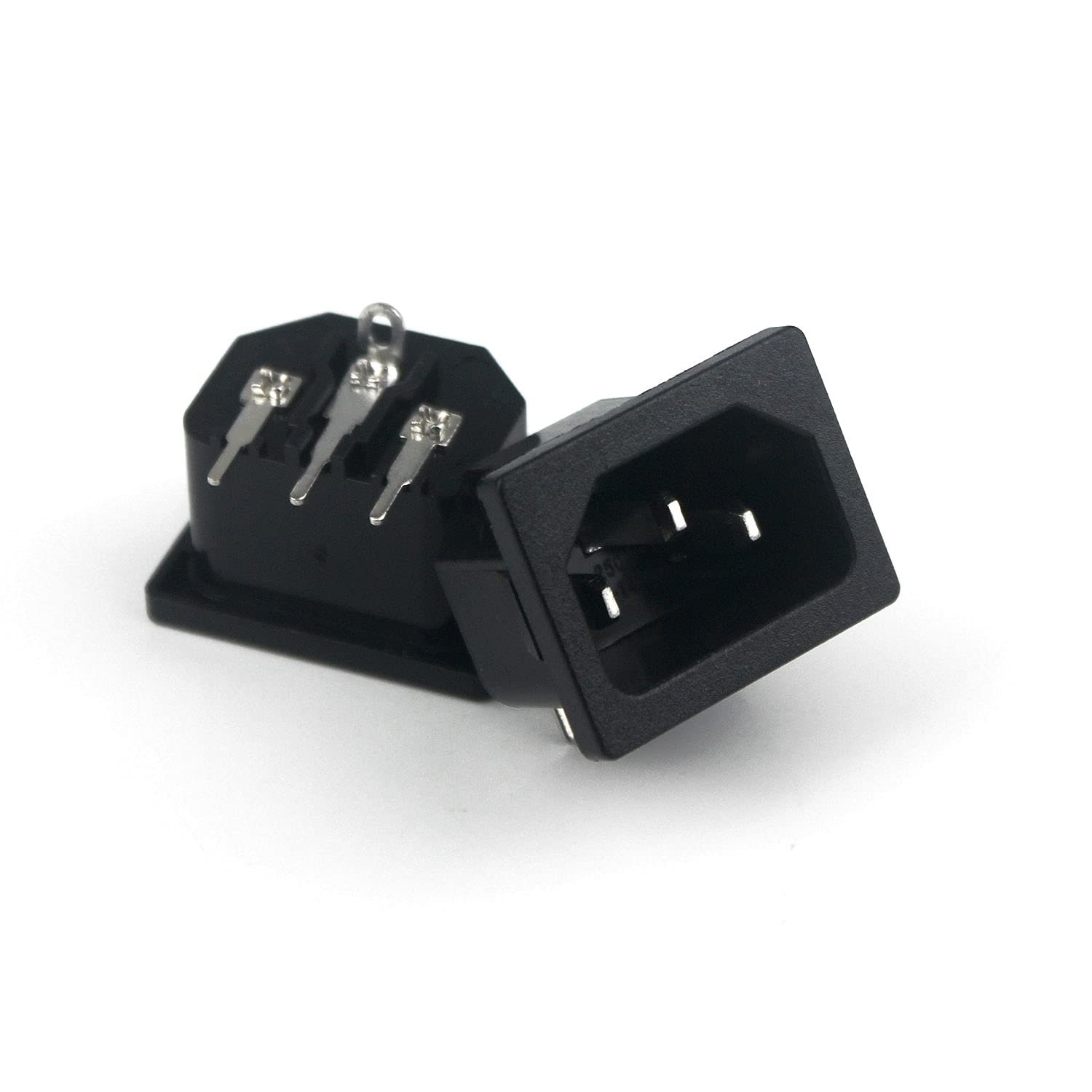

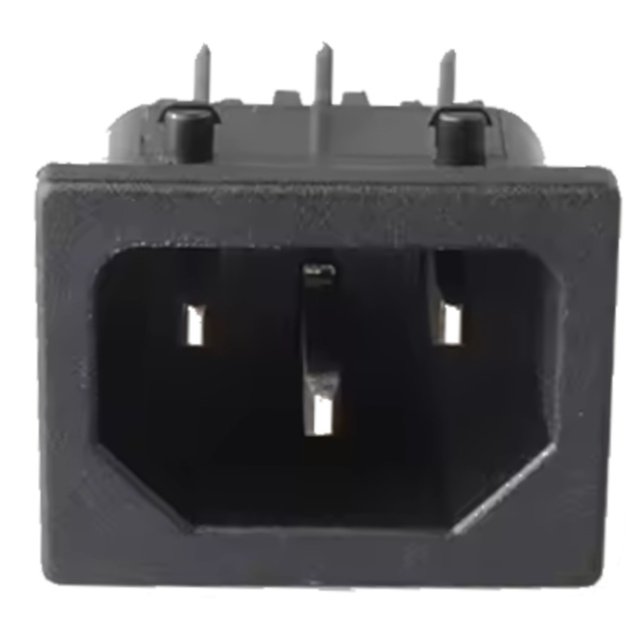

AC 250V 10A Power Socket 3 Pins Male Right Angle On PCB
The AC 250V 10A Power Socket 3 Pins Male Right Angle PCB Mount is a compact and reliable AC mains input connector designed for direct mounting onto printed circuit boards. This socket features a standard IEC C14 male inlet with 3 pins configured at a right angle, allowing for low-profile integration into power supply circuits and electronic devices. Commonly used in desktop power supplies, industrial equipment, consumer electronics, and embedded power modules, this connector ensures a safe and secure connection to AC mains power.
The right-angle pin layout minimizes footprint height and simplifies PCB layout, while the robust contacts provide excellent electrical conductivity and long-term durability. It is an ideal choice for designs where space-saving and efficient PCB integration of the AC input are essential.
Key Features
IEC C14 Male Inlet: Standard 3-pin AC power input connector.
Right Angle PCB Mount: Optimized for horizontal placement on PCBs.
Compact Form Factor: Saves space inside enclosures and power modules.
Rated for Safety: Handles up to 250V AC and 10A current.
Durable Contacts: Secure, corrosion-resistant connection.
Universal Compatibility: Widely used in power supplies and electronics.
Specifications
Connector Type: IEC C14 Male Power Socket.
Pin Configuration: 3 pins, right-angle PCB mount.
Rated Voltage: 250V AC.
Rated Current: 10A max.
Mounting Style: PCB through-hole, right-angle.
Contact Material: Brass or phosphor bronze with tin plating.
Insulator Material: Flame-retardant plastic (e.g., PA66).
Operating Temperature: -25°C to +85°C.
Compliance: RoHS compliant.
Applications
Desktop and embedded power supply units.
Consumer electronics and home appliances.
Industrial control systems.
Test and measurement instruments.
Custom PCB-based power modules.
DIY and hobby electronics requiring integrated AC input.
| Parameter | Specification |
|---|---|
| Connector Type | IEC 320 C14 Inlet, Male |
| Pins | 3 pins: Line (L), Neutral (N), Earth (E) |
| Mounting Type | Right Angle PCB Mount |
| Rated Voltage | 250 V AC |
| Rated Current | 10 A |
| Contact Resistance | ≤ 50 mΩ |
| Insulation Resistance | ≥ 100 MΩ at 500 V DC |
| Dielectric Strength | 2000 V AC RMS for 1 minute |
| Housing Material | Flame-retardant Nylon PA66 or PBT (UL94V‑0) |
| Contacts Material | Brass or phosphor bronze, tin-plated or nickel-plated ‘ |
| Mounting Hole Pitch | Typical: matches standard IEC PCB footprints |
| Operating Temperature | –25 °C to +85 °C |
| Application | Direct PCB soldering for power input on power supplies, chargers, adapters, appliances |
