7400 IC quad 2-input NAND gate IC 14-pin DIP

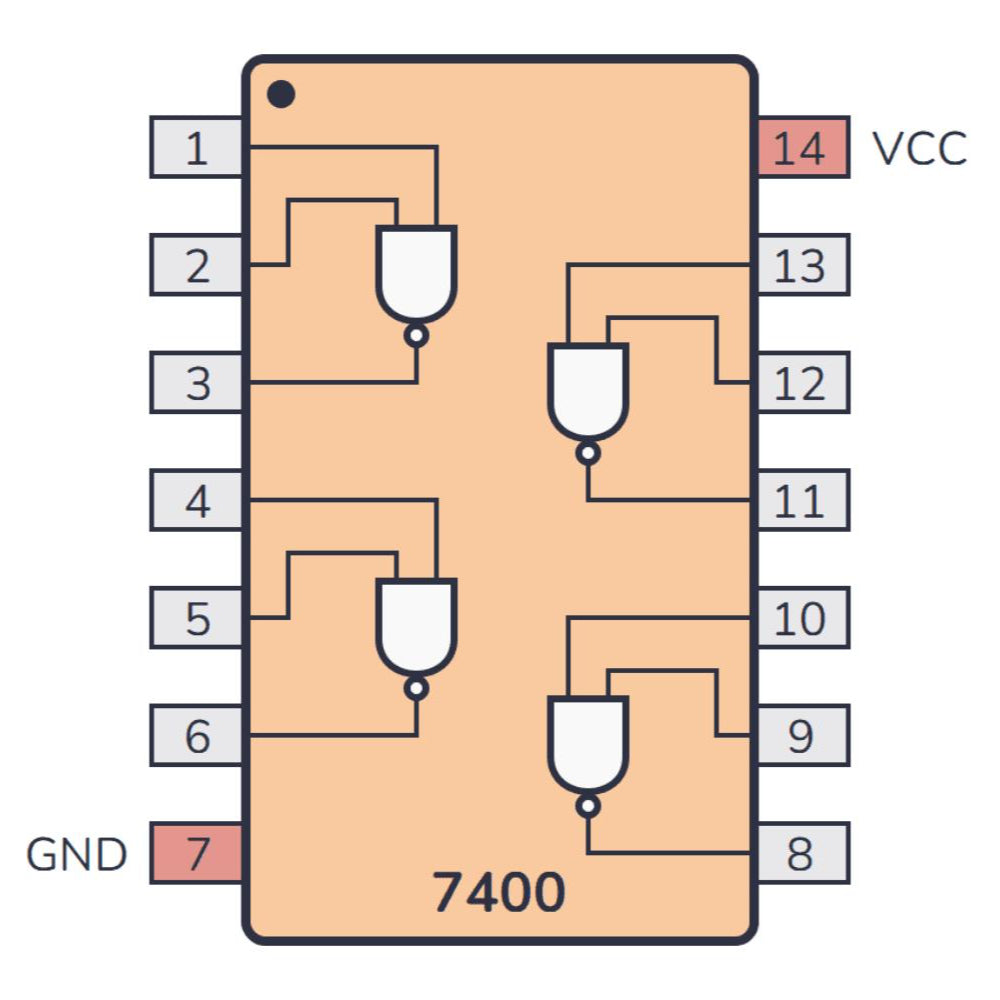

The IC 7400 provides four independent 2-input NAND gates inside a single 14-pin Dual In-line Package (DIP). It belongs to the standard 7400 TTL (Transistor-Transistor Logic) family and operates on a 5V power supply. Each gate performs a basic NAND logic operation, which outputs LOW only when both inputs are HIGH. Engineers use this IC to build larger digital systems from simple logic functions. The 7400 delivers fast switching performance and maintains excellent noise margins.
Its TTL-compatible inputs and outputs ensure smooth integration with other TTL components. Designers choose the 7400 IC for its consistent behavior, quick response, and reliable performance in both prototype and production-level circuits. Electronics students often use it to learn about logic gates, while professionals rely on it in control circuits, digital signal systems, and logic-based automation. This IC offers a compact, low-cost solution for creating versatile digital logic designs. From basic logic circuits to sophisticated control units, the IC 7400 continues to serve as a cornerstone in digital electronics.
Features
Contains four independent 2-input NAND gates
Operates from a single 5V power supply
Fast switching speed and reliable logic levels
TTL-compatible inputs and outputs
Compact 14-pin DIP package
Wide operating temperature range
Low power consumption in standard TTL logic
Applications
Digital logic circuit design
Signal processing and timing control
Arithmetic and control units in CPUs
Basic logic building blocks in combinational circuits
Educational labs for digital electronics training
DIY electronics and microcontroller interfacing
Gate-level implementation of logic functions
Specifications Table
| Parameter | Value |
|---|---|
| Logic Family | TTL (Standard) |
| Number of Gates | 4 |
| Gate Type | NAND |
| Number of Inputs per Gate | 2 |
| Supply Voltage (Vcc) | 4.75V to 5.25V |
| Typical Operating Voltage | 5V ‘ |
| Max Input Current | 1.6 mA |
| Output Current (High Level) | -400 µA |
| Output Current (Low Level) | 16 mA |
| Propagation Delay | ~10 ns |
| Power Dissipation | 10 mW (typical) |
| Operating Temperature Range | 0°C to 70°C |
| Package Type | DIP-14 / SOIC-14 |
| Pin Count | 14 |
