4067 IC 16-Channel Analog Demultiplexer
The CD4067BE is a high-performance 16-channel analog multiplexer/demultiplexer designed to route one of 16 analog or digital signals to a common output line. Engineers use this IC to simplify circuit complexity when handling multiple signals, as it allows for the selection of one channel from sixteen using only four control lines.
This IC supports both analog and digital signals and operates over a wide voltage range, making it ideal for interfacing with microcontrollers, ADCs, DACs, and other signal processing components. Each of the 16 channels features low “on” resistance and minimal crosstalk, ensuring high signal integrity.
Key Features
16-channel analog/digital multiplexer/demultiplexer
Operates bidirectionally for analog or digital signals
Wide supply voltage: 3V to 18V
Low “on” resistance (typically 125Ω at VDD = 10V)
Four-bit binary control inputs (S0 to S3)
High noise immunity and low crosstalk
Standard CMOS logic compatibility
Enable pin to disable all channels
Low power consumption
24-pin DIP package for easy integration
Product Specifications
| Specification | Value |
|---|---|
| Professional Name | CD4067BE |
| Function Type | 16-channel Analog/Digital Multiplexer |
| Technology | CMOS |
| Supply Voltage Range | 3V to 18V |
| Logic Input Levels | CMOS/TTL compatible |
| Control Inputs | 4-bit binary (S0–S3) |
| Enable Pin | Active low (disables all channels) |
| “On” Resistance | ~125Ω @ 10V VDD |
| Crosstalk | Low ‘ |
| Signal Direction | Bidirectional |
| Package | DIP-24 |

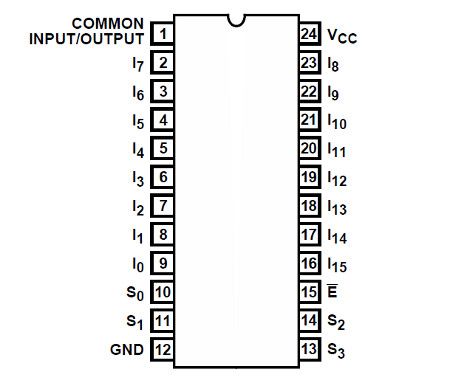

Pin Configuration (DIP-24)
| Pin No. | Name | Description |
|---|---|---|
| 1 | X4 | Channel 4 |
| 2 | X6 | Channel 6 |
| 3 | X7 | Channel 7 |
| 4 | X5 | Channel 5 |
| 5 | X3 | Channel 3 |
| 6 | X2 | Channel 2 |
| 7 | X1 | Channel 1 |
| 8 | X0 | Channel 0 |
| 9 | IN/OUT | Common I/O (shared input/output) |
| 10 | ENABLE | Active-low channel enable |
| 11 | VSS | Ground |
| 12 | S0 | Select Line 0 (LSB) |
| 13 | S1 | Select Line 1 |
| 14 | S2 | Select Line 2 |
| 15 | S3 | Select Line 3 (MSB) |
| 16 | VDD | Positive supply |
| 17–24 | X8–X15 | Channels 8 through 15 |
Applications
Signal routing and channel selection
Analog signal switching for ADC/DAC interfacing
Multiplexed sensor systems
Audio signal routing
Test and measurement equipment
Data acquisition systems
Microcontroller-based control systems
LED control and matrix scanning
