4012 IC Dual 4-Input NAND Gate CMOS
The CD4012BE offers two independent 4-input NAND gates in a single 14-pin DIP package, giving designers a compact yet powerful solution for advanced logic functions. Built using CMOS technology, this IC ensures low power consumption and high noise immunity, making it ideal for both battery-powered and industrial systems. This NAND gate IC fits perfectly into breadboard setups and PCB layouts, thanks to its DIP-14 form factor.
You can use the CD4012BE to implement complex logic operations without stacking multiple gates or ICs. It simplifies circuit design while maintaining performance and reliability. Its wide supply voltage range from 3V to 15V allows seamless integration into various digital and analog logic environments. The logic levels are compatible with both TTL and CMOS families, ensuring design flexibility. Whether you’re developing custom logic blocks, creating control systems, or building digital learning kits, the CD4012BE handles a broad range of tasks with consistent performance
Key Features
Dual 4-input NAND gates in one chip
Wide supply voltage: 3V to 15V
Low power consumption (CMOS technology)
High noise immunity
TTL and CMOS logic compatibility
Standard 14-pin DIP package
Fast switching speeds
Operating temperature: -55°C to +125°C

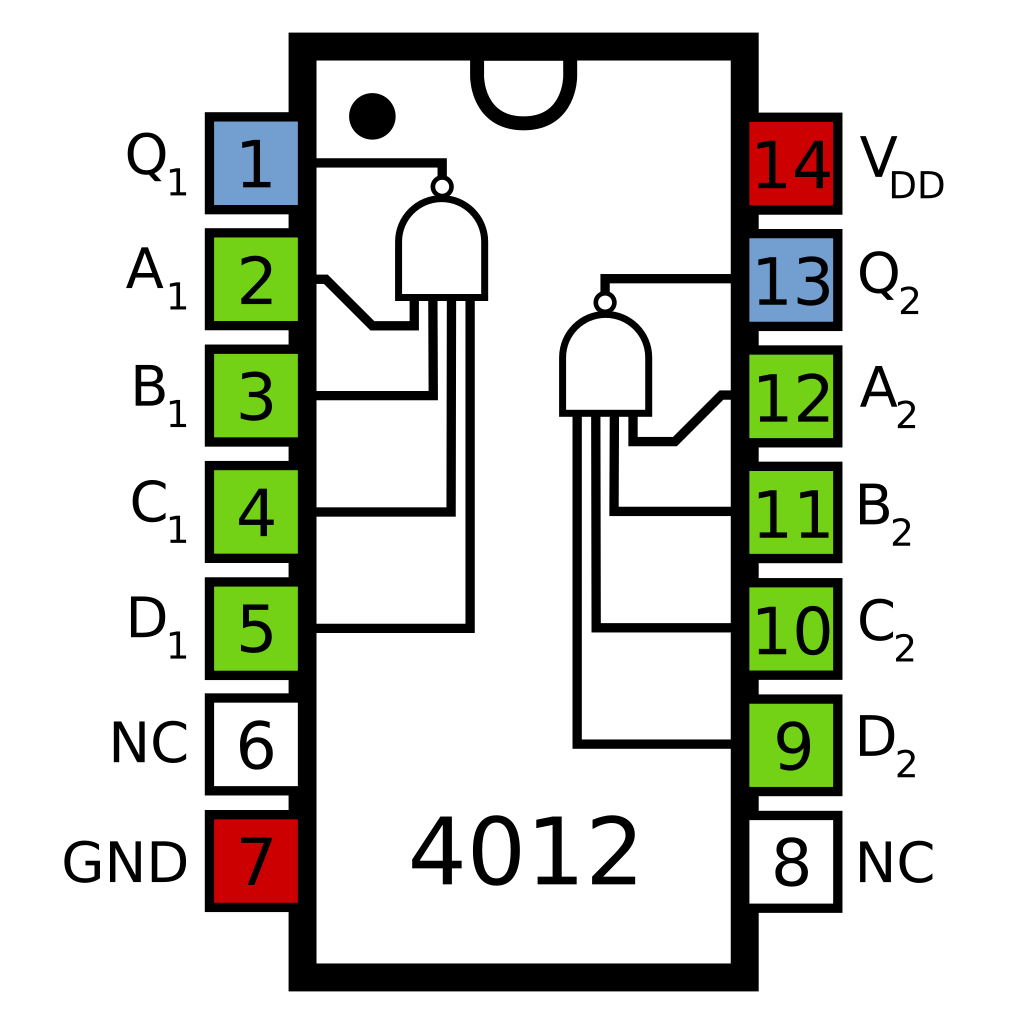

Pin Configuration (DIP-14)
| Pin | Label | Function |
|---|---|---|
| 1 | A1 | Input Gate 1 |
| 2 | B1 | Input Gate 1 |
| 3 | C1 | Input Gate 1 |
| 4 | D1 | Input Gate 1 |
| 5 | Y1 | Output Gate 1 |
| 6 | NC | No Connection |
| 7 | GND | Ground |
| 8 | Y2 | Output Gate 2 |
| 9 | A2 | Input Gate 2 |
| 10 | B2 | Input Gate 2 |
| 11 | C2 | Input Gate 2 |
| 12 | D2 | Input Gate 2 |
| 13 | NC | No Connection |
| 14 | VDD | Power Supply (+V) |
Product Specifications
| Parameter | Value |
|---|---|
| IC Type | Dual 4-Input NAND Gate |
| Part Number | CD4012BE |
| Logic Family | CMOS |
| Supply Voltage Range | 3V to 15V ‘ |
| Output Current | ±1.0 mA (max) |
| Package Type | DIP-14 |
| Logic Compatibility | TTL and CMOS |
| Operating Temperature | -55°C to +125°C |
Applications
Custom logic design
Signal processing circuits
Control systems
Educational logic kits
Digital timers and counters
Industrial automation logic
Home electronics projects
