1-Channel 24V Relay Module Active Low Trigger

1-Channel 24V Relay Module Active Low Trigger

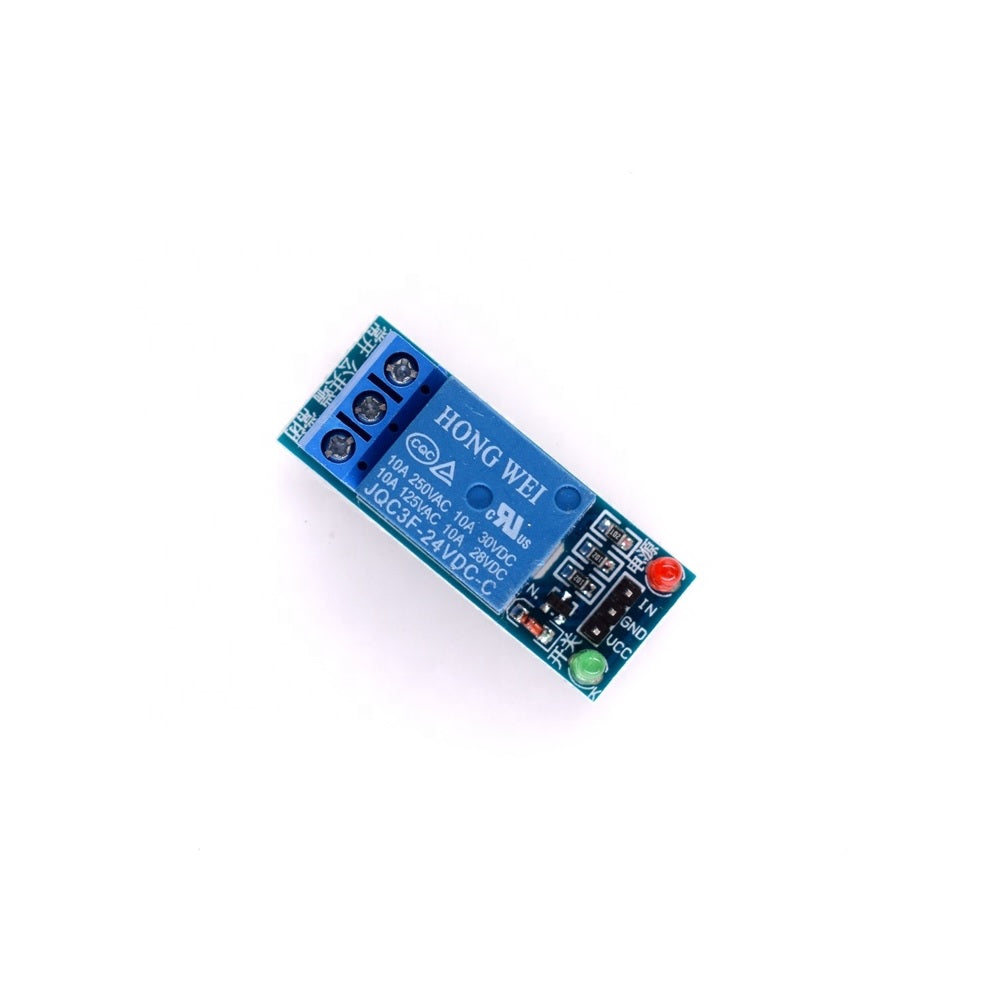

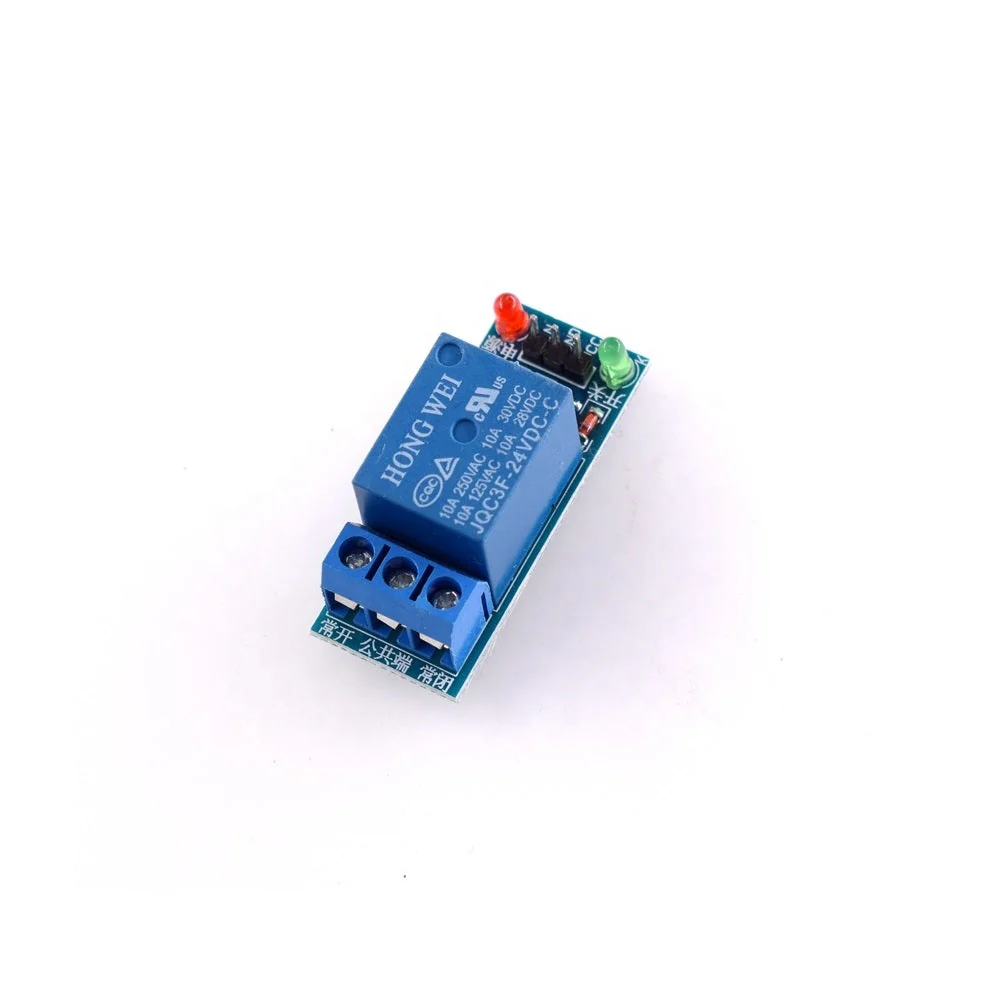

The 1-Channel 24V Relay Module (Active Low) provides reliable switching control for one load using a 24V DC low-level trigger signal. The relay activates when the input pin receives a low logic level, making it compatible with controllers and circuits configured for active low operation.

It supports AC loads up to 250V/10A and DC loads up to 30V/10A, ensuring versatile operation for appliances, motors, pumps, and other electrical devices. Integrated opto-isolation ensures electrical separation between the control side and the load, while flyback diodes protect sensitive control circuits from relay coil voltage spikes. This module works with Arduino, ESP32, Raspberry Pi, PLCs, and other controllers, making it suitable for automation systems, IoT projects, industrial setups, and prototyping environments where a single reliable switching channel is needed.

Key Features

• Provides one relay channel with a 24V DC active low input.

• Handles AC loads up to 250V and 10A safely.

• Supports DC loads up to 30V and 10A continuously.

• Includes opto-isolators for input and load circuit isolation.

• Flyback diodes protect control boards from relay coil surges.

• Works with Arduino, Raspberry Pi, ESP32, and PLC systems.

• Screw terminals allow quick wiring and stable connections.

Applications

• Controls appliances such as lamps, fans, and simple electrical devices.

• Connects low-voltage controllers to higher voltage powered systems.

• Operates small pumps, motors, or solenoids in automation projects.

• Enables IoT and smart home solutions requiring single load control.

• Manages switching in workshops and small industrial setups.

• Provides switching for prototypes or DIY electronic circuits.

• Integrates into PLC-controlled automation with reliable single-channel output.

Specifications Table
